Desktop 4-Axis Rotary Automatic Soldering Robot With 360° Rotating Soldering Head

Name: Desktop 4-Axis Rotary Automatic Soldering Robot With 360° Rotating Soldering Head
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-S331R
Price: 3,450.00 USD
Availability: InStock

Marka Adı:	HSTECH
Model Numarası:	HS-S331R
Moq:	1 adet
fiyat:	negotiable
Ödeme Şartları:	T/T
Tedarik Yeteneği:	100 Adet/Ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

CE,ISO

Ürün Adı:

Masaüstü Otomatik Lehimleyici Robotu

Gerilim:

110V / 220VAC

Isıtma Gücü:

150W

platformu:

Çift

Garanti:

1 Yıl

X/Y/Z yolculuk aralığı:

300×300×100mm

Ambalaj bilgileri:

Ahşap

Yetenek temini:

100 Adet/Ay

Vurgulamak:

4-axis automatic soldering robot

360° rotating soldering head

desktop automatic soldering machine

Ürün Tanımı

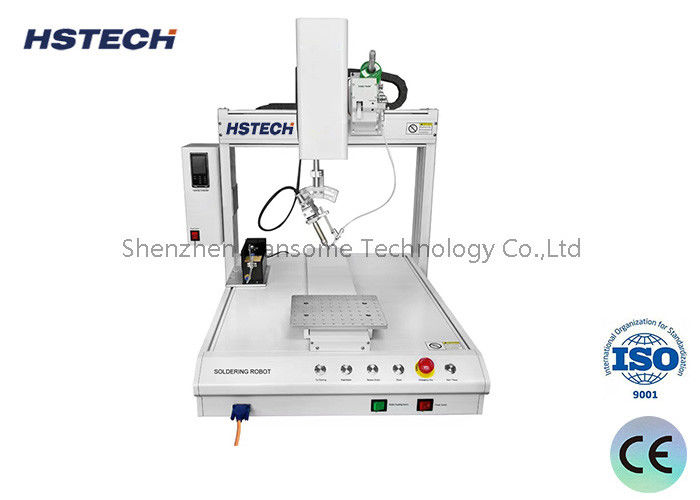

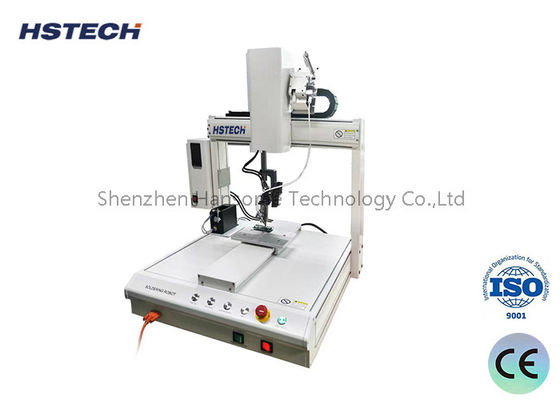

Desktop 4-Axis Rotary Automatic Soldering Robot With 360° Rotating Soldering Head

HSTECH HS-S331R Four Axis Rotary Soldering Robot

Programmable Auto Soldering Machine for Charger Plug DC Terminal LED Strip Soldering

Product Overview

Model HS-S331R is a 4-axis automated soldering robot consisting of X/Y/Z linear axes plus a 360° rotating R axis developed by HSTECH. Designed to accomplish blind soldering tasks impossible for reflow and wave soldering equipment, this unit excels at assembling mixed-type PCBs, heat-sensitive components and delicate electronic parts after SMT processing.

It is widely adopted for PCB wire soldering, charger plug welding, connector terminals, DC terminals and LED strip bonding across consumer electronics industries. Replacing manual soldering effectively stabilizes welding quality, boosts productivity and cuts labor costs. Compact desktop layout enables standalone operation or inline integration with automated production lines.

Technical Specifications

X/Y/Z Travel Range	300300100mm
R Axis Rotation	360° full rotation
Max XYZ Moving Speed	300mm/s
Drive Mode	Stepping Motor + Timing Belt Transmission
Positioning Repeatability	±0.02mm
Operation Mode	Full automatic running
Programming Method	Teach pendant manual programming
Control System	Dedicated constant-temperature control board
Program Storage	Store up to 1000 sets of processing programs; max 5,000 points per single file
Storage Capacity	256M for teach box, 32M for offline card; up to 100,000 processing points per file
Overall Weight	85kg
Dimension (LWH)	516585800mm
Power Supply	AC220V,50/60Hz,350W
Temperature Control Range	0~550℃
Tip Cleaning	Pneumatic air blow automatic cleaning
External Port	USB & RS232
Soldering Type	Spot Soldering / Drag Soldering
Working Ambient	5~40℃, 20%~90%RH non-condensing

Core Product Advantages

4-Axis Linkage & Omni-directional Soldering: Equipped with 360° rotatable R-axis soldering head, the machine reaches hidden blind holes and side pins inaccessible to standard soldering devices. Ideal for irregular PCBs and thermally vulnerable components.
High Precision & Stable Structure: Aluminum alloy frame avoids deformation and rust. Precision stepping motor drive ensures ±0.02mm repeat accuracy, delivering consistent solder joints in mass production and eliminating uneven quality from manual soldering.
Efficient Programming & Flexible Production: Support point-to-point and block copy function to shorten programming time drastically. Offline programming via storage card saves machine waiting time, realizing quick model change for multi-spec small-batch orders.
Auto Soldering Tip Maintenance: Built-in pneumatic automatic cleaning mechanism regularly removes oxide from soldering iron tip, reducing tip wear and keeping stable soldering effect continuously.
Constant Temperature Soldering Control: Precise temperature regulation from 0 to 550℃ fits both leaded and lead-free solder wires, preventing overheating damage to sensitive electronic components.
Convenient Data Transmission: Dual USB and RS232 interfaces support program import/export and data connection with factory MES production management system for intelligent workshop management.

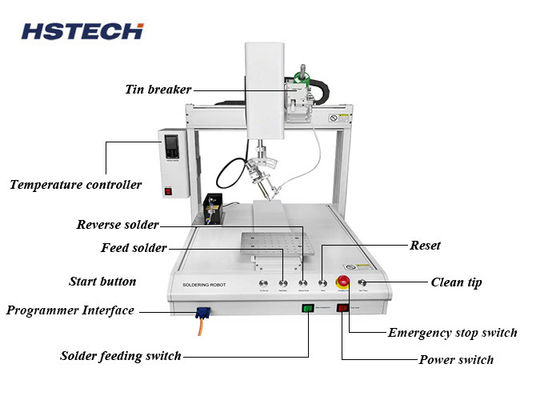

Main Components

Soldering Iron Head: Real-time temperature feedback design for stable heat output during continuous soldering.
Digital Temperature Controller: Accurate real-time temperature adjustment to avoid cold solder or component burn.
Handheld Teach Pendant: Intuitive operation for fast program setup without complicated coding.
Auto Solder Wire Feeder: Steady quantitative solder feeding to control solder volume precisely for uniform joints.

Application Fields

Consumer Electronics: Charger plugs, USB connectors, DC power terminals
Lighting Industry: LED strip light bonding & PCB soldering
Precision Assembly: Mixed SMT+THA circuit boards and fragile small components
Wiring Processing: Cable-to-board tin soldering for various electronic modules
