| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-N100L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | NG/OK Unloader | Color: | White |
|---|---|---|---|
| Control: | PCL And Touch Screen | Magazine: | Separately, Each Hold 2 Magazine |
| Warrany: | 1 Year | Display: | 3 Color |

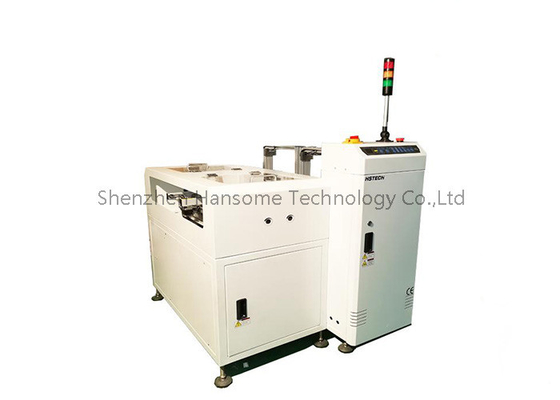

Highly Adaptable PCB Handling Equipment for Various PCB Sizes and Shapes
Intorduction
This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.
Features
1.PLC program control.
2.Strong,firm
3.Optional control button or touch screen control up to customers.
4.Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guaranty during loading&unloading.
6.Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10, Three color tower light display.
11. SMEMA compatible.
Specification
| Model: | HS-N100M | HS-N100L | ||||||
| Voltage: | AC100V/220V, 50/60Hz | |||||||
| Size: | M | L | ||||||
| PCB Size(mm): | (50x50)~(330x250) | (50x50)~(450x330) | ||||||
| Magazine racks size(mm): | 355*320*560 | 460*400*560 | ||||||
| Magazine Qty | Upper conveyor,1 pc; bottom conveyor 1pc | |||||||
| Air supply: | 0.4~0.6Mpa,20L/Min max | |||||||
| PCB loading time: | 6 seconds, or customized | |||||||
| Transport height: | 900±20(mm) | |||||||
| Transport Direction: | L-R or R-L (optional) | |||||||
| PCB thickness: | Min 0.6mm | |||||||
| Up/down pitches: | 1-4(10mm step) | |||||||
| Communication | SMEMA signal | |||||||
| Machine Dimension(mm): | 1550*1550*1250 | 1850*1780*1250 | ||||||
| Gross Weight: | Approx 220kg | Approx 320kg | ||||||
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
