| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C1500 |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | Linking Conveyor | Other Name: | SMT Conveyor |
|---|---|---|---|
| Transporting Length: | 1500mm | Transport Belt: | ESD Flat Belt |
| Working Table: | ESD Table | Width Adjustment: | Hand Crank/ Optional Automatic |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

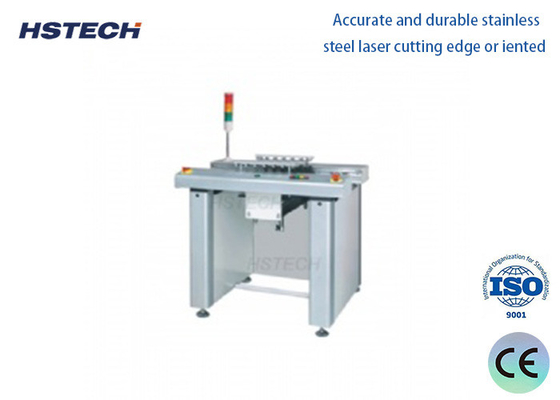

1500mm Length Aluminum Alloy PCB Conveyor with SMEMA Signal for SMT Line
Features
1.Programmable Logic Controller.
2.Hand crank width adjustment
3, Economic space.
4.Use stainless steel screw,smooth and parallel width adjustment
5.Left to right travel,or right to left, front rail fixed
6.ESD working table.
7, Height adjustable and stable feet cup location.
8, Speed control.
9.SMEMA compatible.
Specification
| Model | HS-C1500/HS-C1500S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
