| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SZ350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Turn Conveyor | Suitable PCB Dimension: | 50*50~450*350mm |
|---|---|---|---|
| Power Supply: | AC100-230V,50/60Hz | PLC: | MITSUBISHI |
| Sensor: | Sick | Contol: | LED Button |
| Turn Degree: | 90 Degree, 180degree, 270degree | Signal: | SMEMA |

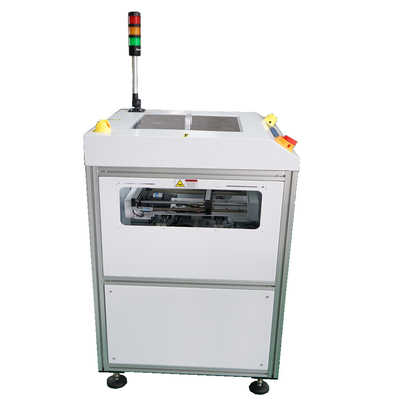

90° PCB Turn Conveyor Top Side Safety Cover for Easy Monitoring of PCB Handling Equipment
Introduction
This machine used for change the PCB flow direction in the SMT production line.Adapt to all kinds of SMT, DIP or assembly line fully automatic 90 degree turn docking.
Features
1, Change the PCB flow direction in 90,180,270 degree.
2, Fixed rail selection based on customer's requirement.

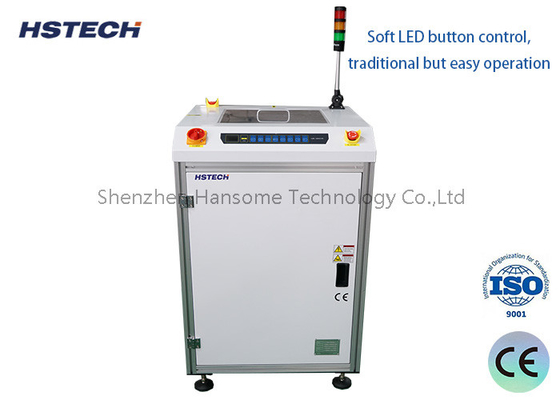

3, Soft LED button control, traditional but easy operation.
4, Top side safety transparent cover, operation can watch the whole working process.
5, Enclosed design with built-in torque limiter ensure high level safety.
6, Hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smooth and parallel width adjustment(lead screw).
9,SMEMA compatible.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
Application
Turn Conveyor is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation. This unit is used to redirect PCBs in a production line.
The PCB is accepted and transferred to the end of the rails. The carriage shuttles forward and then turns 90 degrees. The carriage shuttles forward to align with the next process to deliver the PCB. Once transferred, the carriage returns home to request another PCB.
