| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Machine Name: | Automatic Solder Paste Thawing Machine | Working Mode: | Voltage Mode |
|---|---|---|---|
| Working Voltage: | AC220V 60HZ | Net Weight: | 16kg |
| Product Material: | Steel Plate Spray Paint | Warranty: | 1 Year |

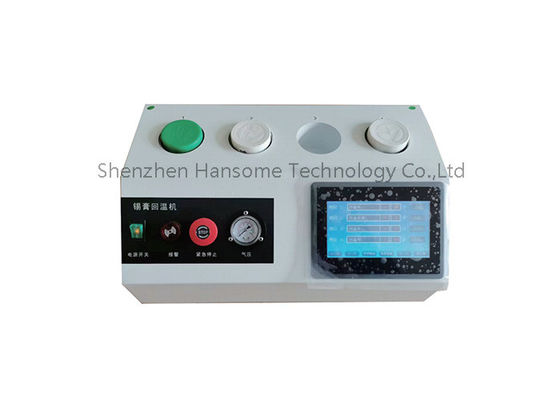

Time Control Automatic Solder Paste Thawing Machine With Multiple Tanks
Introduce
The solder paste needs to be tempered before use. Usually the tempering time is about 4 hours. The purpose is to restore the activity of the refrigerated solder paste and make it easier to use. Our solder paste rewarming machine is an intelligent management device that integrates the functions of refrigerated storage, rewarming, stirring, traceability and direction traceability of solder paste. The refrigeration temperature can be controlled within the range of 1-10 degrees Celsius, and the temperature can be controlled through numbers and temperature. Curve monitoring and recording, first in, first out, to meet the storage and use requirements of different solder pastes.
Specification
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size |

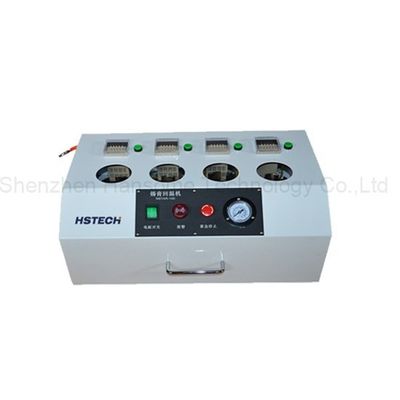

Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
|
| Ability to work | The solder paste and red glue reheating machine/defrosting machine can be used with solder paste in the slot and needle-type red glue (all small red glue with a total length of less than 120MM can be used), and the solder paste and red glue can be switched intelligently. New and old customers can choose from 4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can be customized. Supports 250G/500G solder paste, total length less than 120MM needle tube red glue. | |
Features
1. Using PLC control, imported electrical components are assembled and produced.

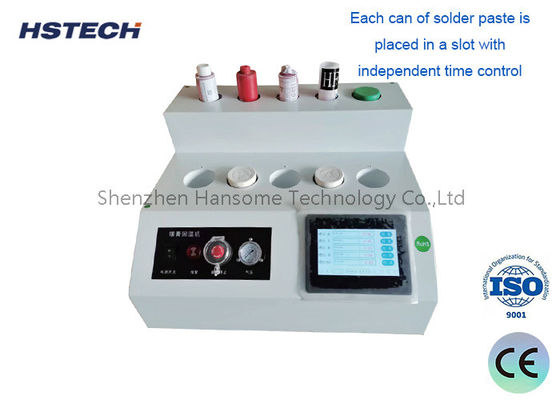

2. Each can of solder paste placement slot has independent time control. After setting the time, the solder paste can will be automatically fixed by the cylinder, and the solder paste will automatically release the can after the solder paste has returned to temperature.
3. Solder paste cans of different specifications and models can be used on the same equipment.
4. Cans of 4/6/8/10/12/14/16-30 can be reheated at the same time, each can is 500g of solder paste. If more cans are reheated, they can be customized according to customer requirements.
5. Each bottle is equipped with a cylinder to fix the solder paste bottle. The solder paste bottle cannot be taken out before the time is up.
The solder paste application and requirement
When the solder paste taken out of the refrigerator before using, the temperature of the solder paste will be much lower than the room temperature. If open the solder paste bottle without thawing, it’s very easy to condense the moisture in the air and adhere to the solder paste. Also if use the solder paste without thawing, after printing, on the reflow soldering process(temperature over 200℃), the water on the solder paste is rapidly vaporized due to strong heat, will lead to the solder paste explosive, then will damage the solder tin and components. So for better printing and soldering performance. The solder paste must thaw before using.
The advantages of the solder paste machine
A, The natural temperature thawing can keep the activity of the flux, which the mixing thawing can not solve the problem.
B, Use the solder paste thawing machine can control the solder paste to the room temperature,which will help control the production, improve the efficiency.
C, Use this machine means control the first process of the SMT production, this is the first step to produce a good quality product.
