Blowing Type Handheld Screw Fastening Machine With M1-M5 Apply Screws Size 2-3KGF/CM2

Blowing Type Handheld Screw Fastening Machine With M1-M5 Apply Screws Size 2-3KGF/CM2

Introduce

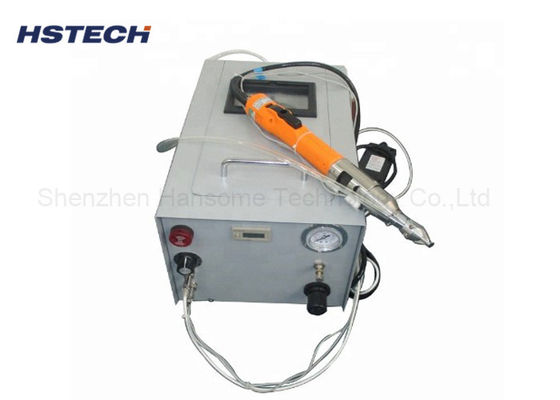

This manual handheld screw locking machine including two parts, first is the feeding system, it will order screws and distribute them through allocation, and then send them to the screwdriver via the pipe via blowing type feeding.Second, the electric or pneumatic screwdriver, it will lock the screws into the right place of the products. Compared with traditional screw locker, this automatic screwdriver machine is much more efficiency, just need one hand to take the screwdriver and location the screw hole. After locking one screw, another screw will automatically blowing feeding to the screw driver via the pipe, so the operator can work all the time, improve the production time and save labor.

The hand-held type consists of an electric screwdriver, a locking mechanism, an automatic nail feeder, and a sensing device. By combining the hand-operated electric screwdriver with the automatic screwdriver, you can twist a screw, and the screwdriver will automatically send a screw to the lock mouth of the electric screwdriver. Next, in daily production, you only need to keep looking for screw holes, saving time on picking up and placing screws, and you can work with one hand.

Features of handheld screw locking machine

1. It adopts turbine loading, which has small size, noise and light weight. It can be stored on the working platform to save space;

2. Automatically arrange and feed screws, automatically screen special-shaped screws, automatically replenish empty materials, and automatically alarm when there is no material;

3. The feeding is controlled by sensors. After locking each piece, it will be fed one by one, and there will be no repeated feeding;

4. The sliding teeth do not feed material: During the locking process, the torque cannot be reached and the screws will not be fed out to prevent material jamming in the batch nozzle;

5. Good stability and no material jamming. Even if the defect causes material jamming, non-professionals can solve the jamming within a few seconds;

6. High efficiency. Generally, one screw can be driven in one second. There is no need to grab the screw, just align the screw hole and tighten the screw;

7. It can reduce the number of screw locking operations by 1 to 2 workers, achieve semi-automatic production, reduce the labor intensity of workers, and improve productivity;

8. Key parts are made of high-quality hardware materials and have undergone special treatment. Electronic components are imported with original packaging to ensure zero faults in the equipment.

Specfication

Application

1. Suitable screws: M1-M6.

2. Suitable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.

3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

4. Screw materials: iron, copper, stainless steel, etc.

5. Materials of products to be screwed: plastic, iron, aluminum, etc.
