| Product Name: | 4 Axis Glue Dispensing Machine | Driven System: | Stepper And Timing Belt |
|---|---|---|---|
| XYZ Working Range: | 400*400*100mm | XYZ Speed: | Max 300mm/s |
| Repeat Accuracy: | ±0.02mm | Warranty: | 1 Year |

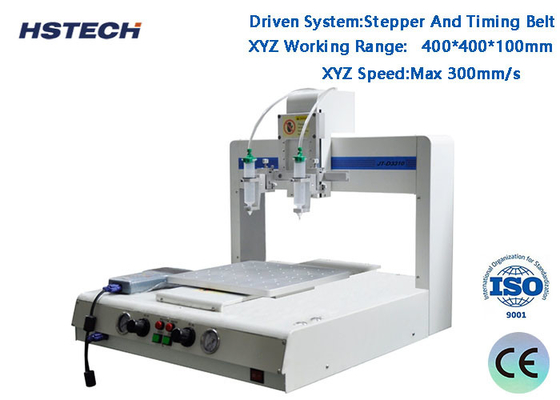

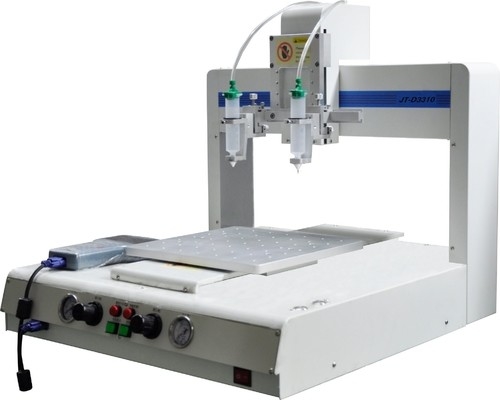

High-Speed Stepper And Timer Belt 4 Axis Glue Dispensing Machine With LCD Screen Operation
Introduction to SMT dispensing machine
Glue dispensing machine: Glue dispensing machine, also known as glue applicator, glue dispensing machine, glue dispensing machine, etc., is an automated machine that specializes in controlling fluid and dripping and coating the fluid on the surface of the product or inside the product. The dispensing machine is mainly used to accurately point, inject, apply and drip glue, paint and other liquids in the product process to the precise position of each product. It can be used to realize dotting, drawing lines, circular or arc shapes.
Dispensing machine classification
1. According to the classification of operation mode, it can be divided into: manual dispensing equipment, semi-automatic dispensing equipment, and fully automatic dispensing equipment.
2. According to the glue, it can be divided into: single liquid dispensing equipment, double liquid dispensing equipment, multi-component dispensing equipment, etc.
3. According to the classification, it can be divided into: thread dispensing equipment, speaker dispensing equipment, mobile phone button dispensing equipment, patch dispensing equipment, board wiper, etc.
4. According to the characteristics of glue, it can be divided into: silicone glue dispensing equipment, UV glue dispensing equipment, and SMT red glue dispensing equipment.
5. According to the number of control axes, it can be divided into: two-axis dispensing equipment, three-axis dispensing equipment, four-axis dispensing equipment, etc.
How does the dispensing machine work?
The working principle of the dispensing machine is that compressed air is fed into the glue bottle (syringe), and the glue is pressed into the feed pipe connected to the piston chamber. When the piston is on the up stroke, the piston chamber is filled with glue. When the piston pushes downward When dispensing the glue needle, the glue is pressed out from the needle mouth. The amount of glue dripped out is determined by the distance of the piston's downstroke, which can be adjusted manually or controlled through programming.
Specification
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 40kg |
| Dimension(L*W*H) |
616*685*645mm
|
