| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | CM-610 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Product Name: | PCBA Router Machine | Feeding: | Drawer Feeding |
|---|---|---|---|
| Working Platform: | Double,can Combined As One Platform | Function: | PCBA Pin Board Separating |
| Material: | Sheet Matel | Color: | Orange,gray |
| High Light: | Dust Collecting PCB Routing Machine,High Speed PCB Routing Machine,Automatic PCB Routing Machine |
||

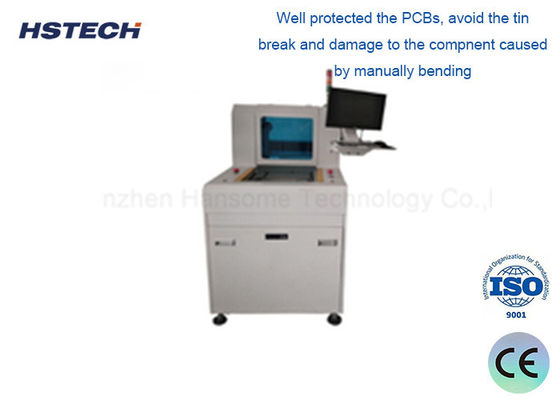

High Speed Automatic Bottom PCB Routing Machine Dust Collecting With Drawer Feeding
PCB (Printed Circuit Board) router, also known as PCB milling machine, is a machine specially used to manufacture printed circuit boards. They play a vital role in electronics manufacturing for operations such as removing unwanted parts from multi-layer PCBs, creating circuit traces, opening holes and shape customization. These machines usually have high milling accuracy and are able to remove PCBs precisely. The unnecessary parts on the circuit ensure the reliability of the circuit.
PCB routers play important roles in the circuit board manufacturing process: removing excess material, creating circuit traces, opening holes, and customizing shapes.
PCB routers are widely used in the fields of electronic manufacturing and circuit board manufacturing, including but not limited to the following application fields: electronic equipment manufacturing, communication equipment, industrial control systems, medical equipment, aerospace and national defense.
PCB routers typically need to be compatible with CAD (computer-aided design) software in order to convert design files into actual milling paths. In addition, they need to be compatible with PCB assembly equipment and inspection equipment to ensure smooth and consistent production processes.
PCB routers are indispensable tools in the electronics manufacturing process. They play a key role in manufacturing high-quality, precision printed circuit boards. The high precision and automated features of these machines help increase production efficiency and ensure the reliability and performance of electronic products.
Features
1.Chinese/English software operation system.

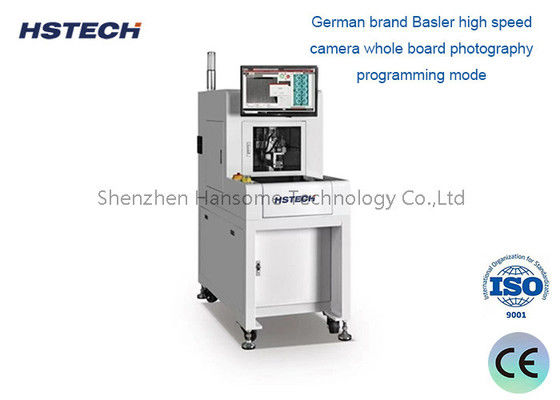

2.German brand Basler high speed camera whole board photography programming mode. Remote control and debugging can be realized.
3.Equipped with auto routing tool(bit) changing,break tool detection, tool height correction function.
4.Single table work, can also be used in combination of two machines, while the equipment can be unmanned operation with a robot, greatly improving production efficiency.
Specifications
| Machine model | RT330 |
| PCB cuttint size | 310*360MM |
| Cutting object | V-groove,stamp hole,circular point,etc. |
| Cutting table | Single table |
| Cutting accuracy | ±0.08MM |
| Repeat accuracy | ±0.015MM |
| Max axis moving speed | X,Y1,Y2:1000mm/s,Z axis:800mm/s |
| Spindle | Chines brand |
| Tool change mode | Manual tool change |
| Spindle routing speed | MAX:60000rpm |
| Tool detection | Automatic tool sinking, tool breaking (optional) |
| Cutting speed | 5～100mm/s adjustable |
| PCB cutting thickness | 0.3-3.0MM |
| Programming method | Whole panel photography,picture drawing line teaching |
| Control method | PC precision 3-axis control system |
| X,Y1,Y2,Z drivern methos | Domestic servo drive (Panasonic option) |
| Suitable routing bits size | 0.8～3.0MM |
| Power supply | AC220V 50/60HZ single phase |
| Machine size | L*W*H(1250mm*650mm*1550mm) |
| Machine weight | 300kg |
| Dust cleaner power | 3HP |
| Dust cleaer power supply | AC380V 3 phase |
| Dust clear size | L*W*H(800mm*400mm*780mm) |
| Dust cleaner size | 60kg |
| Dust cleaning method | Top side/bottom size cleaning (optional) |
Machine details
Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.
Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)
Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.
