| Place of Origin: | Japan |
| Brand Name: | YAMAHA |
| Certification: | CE |
| Model Number: | YS12 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Yamaha Nozzle | Usage: | For YAMAHA YS12 Machine |
|---|---|---|---|
| Part Number: | YS12 | Condition: | Original New, Or Copy New |
| Package: | Foam And Carton | Shipping Term: | TNT DHL FEDEX EMS UPS |
| High Light: | Circuit Board Mounting SMT Nozzle,Sturdy SMT Nozzle,Yamaha YS12 SMT Nozzle |
||
Sturdy Tungsten Steel SMT Nozzle for Yamaha YS12 Circuit Board Mounting
Introduce
1. The suction nozzle is a key component of the placement machine, used to pick up and place SMT components.
2. The suction nozzle uses vacuum adsorption to suck the components, and blows air to place the components on the designated position on the circuit board.
Mounter nozzle material:
1, tungsten steel suction nozzle: tungsten steel suction nozzle sturdy, but easy to white, not afraid of trouble friends, Samsung suction nozzle, or SMT newcomers can choose tungsten steel suction nozzle, whitened with an oil-based pen coated, but also can continue to use.
2, ceramic nozzle: ceramic nozzle white, but very brittle, easy to break. Careful use can avoid or reduce the occurrence of breakage.
3, diamond steel nozzle: strong, good, white, but especially expensive, cost-effective.
4, rubber tip nozzle: when the surface of the material is not flat or sticky material, suitable for the use of rubber tip nozzle, but the rubber tip nozzle life is not long, it is recommended to order the rubber tip nozzle, samsung nozzle models, buy more rubber tip spare, when the tip is worn out, you can directly replace the rubber tip on their own.
Specifications
| Brand Name | Yamaha YS12 type NOZZLE |
| Part Number | YS12 |
| Warranty | 1 month |
| Usage for Machine | pick and place machine |
| Ensure | Test in machine before shippping |
| Guarantee | Original 100% and working |
| Package | Foam package+Plastic BOX+Carton Box |
| Application | SMT PCB Assembly Production Line |
| Delivery Methods | Ocean Transport, Air Transport, Air Express Services |
Features
1.The suction nozzle is a key part of the placement machine for placing components.
2.It uses the adsorption effect of vacuum to absorb the components and places the components on the coordinate position of the circuit board by blowing air.
3.The center of the nozzle and the center of the component and the spatial center of the image obtained should coincide to ensure ideal suction results.
4.When the nozzle is used as the background, it can enhance the contrast of the component image and make it more clearly visible.

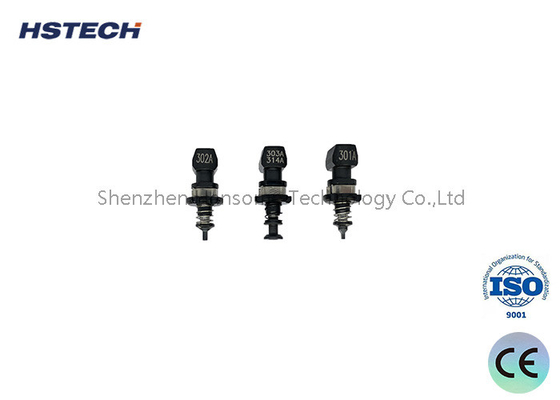

YAMAHA YG12/YS12/YS 24 Series Nozzle

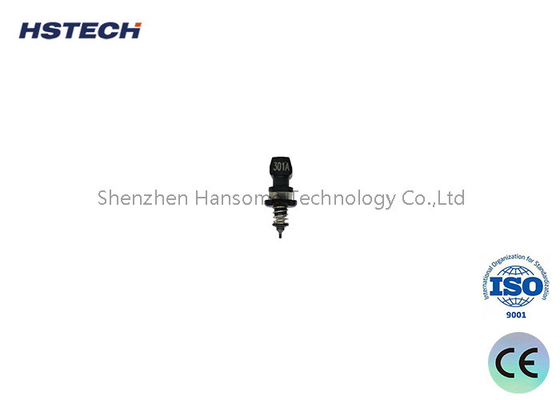

Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE
Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN
Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP

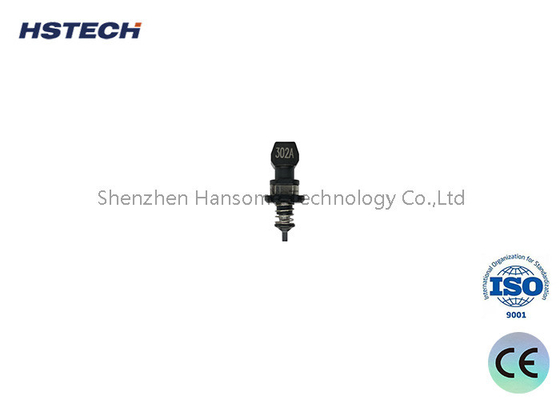

Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.
Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2
Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302

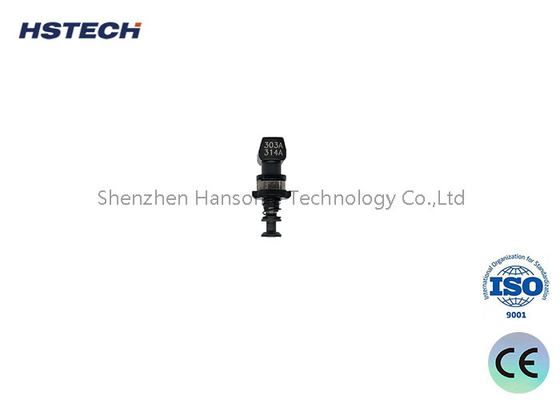

Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314
Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.
Yamaha YG12/YS12/YS24: 90990-17J013 O-RING
Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317
Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.
Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A
Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING
Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
