Durable Blade V-Cut PCB Depaneling Equipment Cutter Machine With Induction Function

Durable Blade V-Cut PCB Depaneling Equipment Cutter Machine With Induction Function

Introduce

PCB cutting machine can cut various types of V-CUT. It is suitable for laser cutting and de-boarding of PCB circuit boards made of soft-hard composite boards, FR4, PCB, FPC, fingerprint recognition modules, covering films, composite materials, copper substrates and other materials.

Splitting machine, LED splitting machine, milling cutter type splitting machine 1. Electric hybrid design, milling cutter slitting, especially suitable for splitting precision SMD thin plates, aluminum circuit boards 2. Guillotine type work, suitable for PCBs of various thicknesses. The cutting stroke is less than 2mm, so there are no concerns about operational safety. 3. Reduce the internal stress generated during cutting to less than 180μST to avoid tin cracks and prevent damage to precision parts. 4. The edge of the V-groove and the parts can be cut The maximum width is 0.3mm and the height is 60mm5. The tool can be sharpened repeatedly after wear.

PCB board depaneling machine classification

1. Cutter-type dividing machine,

2. Stamping type dividing machine,

3. Milling cutter type dividing machine,

4. Laser dividing machine, 5. Guillotine type dividing machine

Features

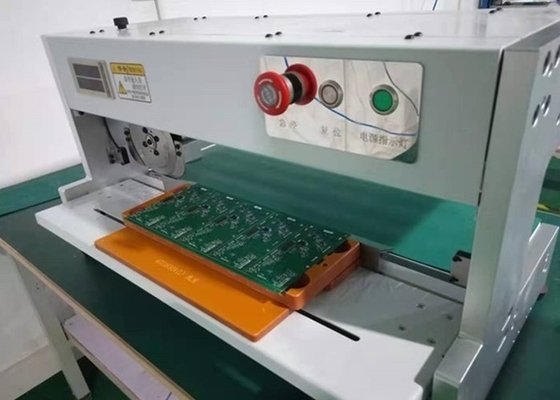

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

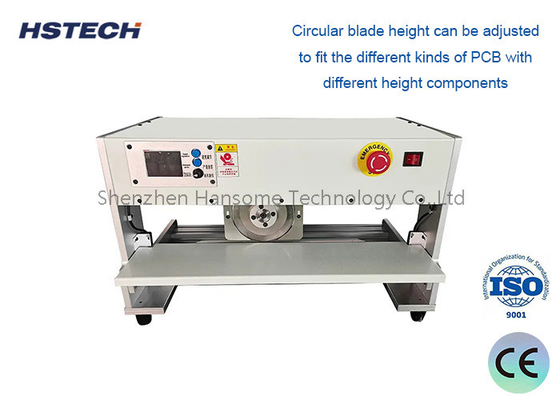

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade

Comparison of advantages and disadvantages

1. Knife-type depaneling machine Advantages: Low cost Disadvantages: It can only perform linear depaneling. There are rough edges.

2. Stamping plate splitting machine Advantages: low initial investment cost and fast speed. Disadvantages: Since special boards and special molds are required, the later costs are high. Stressful.

3. Milling cutter type plate splitting machine Advantages: It can divide plates into any shape, with very little stress and no burrs on the cutting edge. Disadvantages: Big first cost.

4. Advantages of laser slitting machine: It also has the advantages of milling cutter type slitting machine, and can micro-slit PCB boards without stress. Disadvantages: The machine is expensive.

5. Guillotine-type plate splitting machine Advantages: Purely pneumatic (commonly used air pressure in the factory), small in size (desktop type), large in output, capable of cutting aluminum substrates of any width and thickness, and highly cost-effective.

Specification
