| Place of Origin: | Japan |
| Brand Name: | JUKI |
| Model Number: | 500 501 502 503 504 505 506 507 508 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | JUKI Nozzle | Part Number: | 500 501 502 503 504 505 506 507 508 |
|---|---|---|---|
| Warranty: | 1 Year | New: | Original New |
| Application: | SMT Pick And Place Machines | Automatic / Manual: | Automatic |
| High Light: | 507 JUKI SMT Nozzle,508 JUKI SMT Nozzle,502 JUKI SMT Nozzle |
||

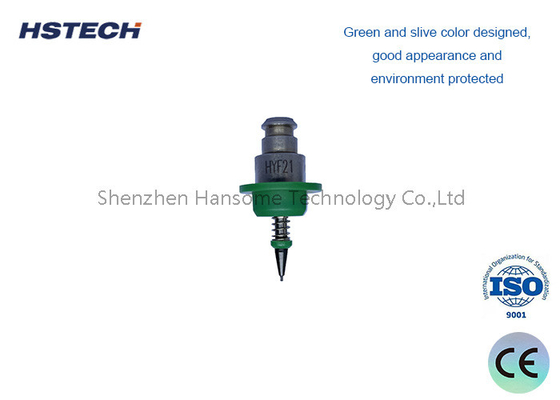

Green And Sliver JUKI SMT Nozzle 500 501 502 503 504 505 506 507 508 STM Original Brand New
Introduce
The SMT nozzle is installed on the patch head and is used to pick up component patches and mount them on the circuit board. With the miniaturization and high density of components on circuit boards, higher requirements have been placed on the accuracy of placement machines, as well as higher requirements on the precision and quality of SMT nozzles.
SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.

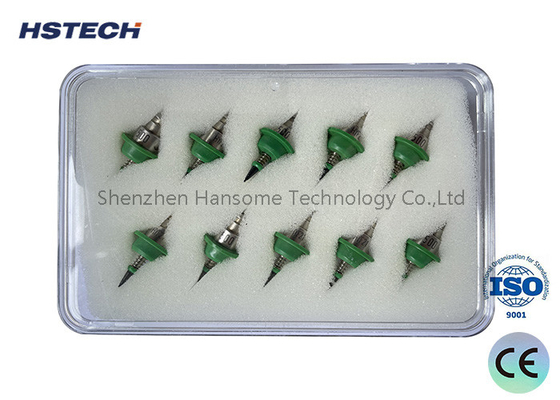

JUKI Nozzle Series

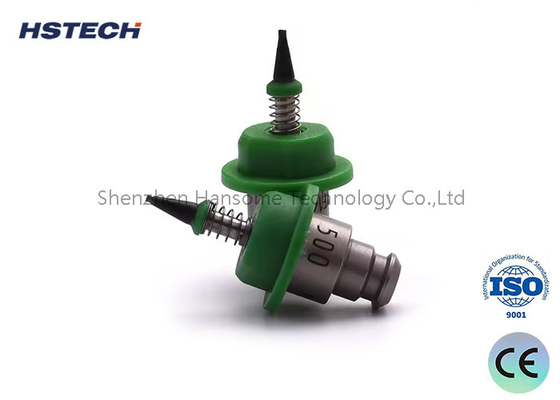

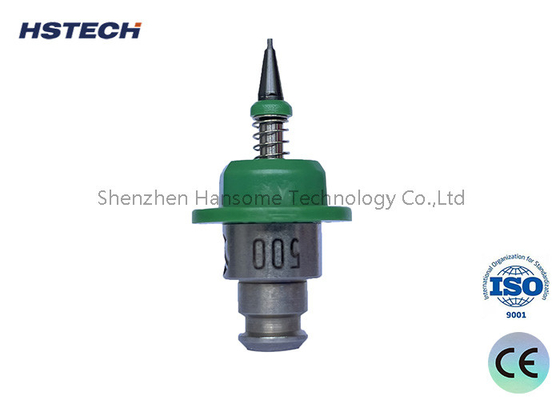

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5

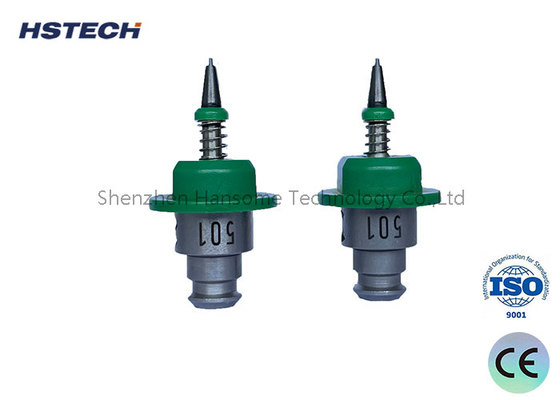

E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
E36177290A0 JUKI NOZZLE 512
E36187290A0 JUKI NOZZLE 513
E36197290A0 JUKI NOZZLE 514
E36207290A0 JUKI NOZZLE 515
E36217290A0 JUKI NOZZLE 516
E36227290A0 JUKI NOZZLE 517
E36227290A0 JUKI NOZZLE 518
E36227290A0 JUKI NOZZLE 519
E36227290A0 JUKI NOZZLE 520
E36227290A0 JUKI NOZZLE 521
E36227290A0 JUKI NOZZLE 522
E36227290A0 JUKI NOZZLE 523
E36227290A0 JUKI NOZZLE 524
E36227290A0 JUKI NOZZLE 525
E36227290A0 JUKI NOZZLE 526
E36227290A0 JUKI NOZZLE 527
E36227290A0 JUKI NOZZLE 528
E36227290A0 JUKI NOZZLE 529
E36227290A0 JUKI NOZZLE 530
E36227290A0 JUKI NOZZLE 531
E36227290A0 JUKI NOZZLE 532
E36227290A0 JUKI NOZZLE 533
E36227290A0 JUKI NOZZLE 534
E36227290A0 JUKI NOZZLE 535
E36237290A0 JUKI NOZZLE 800
E36247290A0 JUKI NOZZLE 801
E36257290A0 JUKI NOZZLE 802
E36267290A0 JUKI NOZZLE 803
EG350729M01 JUKI NOZZLE 804
