| Place of Origin: | Japan |
| Brand Name: | FUJI |
| Certification: | CE |
| Model Number: | NXT |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | FUJI NXT Nozzle | Shipping Term: | TNT DHL FEDEX EMS UPS |
|---|---|---|---|
| Quality: | Top | New: | Original / Copy |
| Mahchine: | NXT Pick And Place Machine | Nozzle Head: | H12 |
| High Light: | H12 SMD Mounter Nozzles,SMD Mounter FUJI SMT NOZZLE,3.7mm FUJI SMT NOZZLE |
||

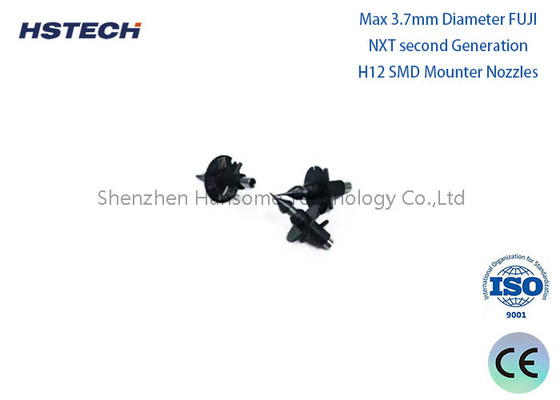

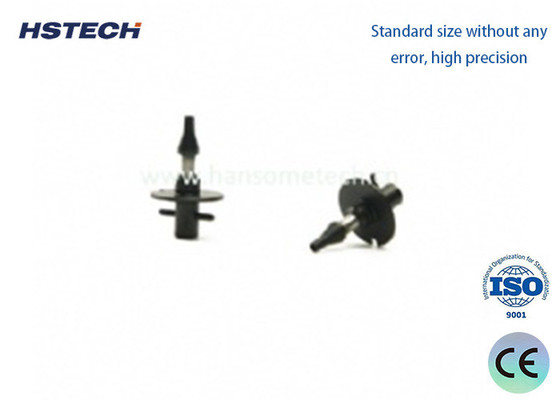

Max 3.7mm Diameter FUJI SMT NOZZLE NXT Second Generation H12 SMD Mounter Nozzles
SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
NXT H12/H08/H04/H01 Nozzle Series
| Part Numbwr | Description |
| AA05600 | H0812 Yellow Φ0.45/0.3 |
| AA05700 | H08 Blue Φ0.7/0.5 |
| AA05800 | H08 Pink Φ1.0 |
| AA20A00 | H08 Green Φ1.3 |
| AA06400 | H08 Orange Φ1.3 Melf |
| AA20B00 | H08 Aqua Φ1.8 |
| AA19G00 | H08 Orange Φ1.8 Melf |
| AA20C00 | H08 Purple Φ2.5 |
| AA06504 | H08 Orange Φ2.5 Melf(R07-025M-070) |
| AA0WT00 | H08 Purple Φ2.5G |
| AA20D00 | H08 Yellow-Green Φ3.7 |
| AA18C00 | H08 Yellow-Green Φ3.7G |
| AA20E00 | H08 Medium pruple Φ5.0 |
| AA06300 | H08 Red Φ5.0G |
| AA06W00 | H04 Pink Φ1.0 |
| AA06X00 | H04 Green Φ1.3 |
| AA06Y00 | H04 Aqua Φ1.8 |
| AA22Z14 | H04 Orange Φ1.8 Melf |
| AA06Z00 | H04 Pruple Φ2.5 |
| AA07F00 | H04 Pruple Φ2.5G |
| AA07A00 | H04 Yellow-Green Φ3.7 |
| AA07G00 | H04 Yellow-Green Φ3.7G |
| AA07B00 | H04 Medium pruple Φ5.0 |
| AA07H00 | H04 Red Φ5.0G |
| AA07C00 | H04 Medium pruple Φ7.0 |
| AA07K00 | H04 Dark Red Φ7.0G |
| AA07D00 | H04 Medium pruple Φ10.0 |
| AA07L00 | H04 Navy Φ10.0G |
| AA07E00 | H04 Medium pruple Φ15.0(R19-150-155) |
| AA07M00 | H04 White Φ15.0G(R19-150-155) |
| AA8WX00 | H04S Φ2.5(R19-025-155-S) |
| AA8CC00 | H04S Φ3.7(R19-037-155-S) |
| AA0AS00 | H01 Pink Φ1.0 |
| AA05800 | H01 Green Φ1.3 |
| AA0MZ00 | H01 Orange Φ1.3 Melf |
| AA06900 | H01 Aqua Φ1.8 |
| AA11R00 | H01 Orang Φ1.8 Melf |
| AA07000 | H01 Purple Φ2.5 |
| AA08400 | H01 Purple Φ2.5G |
| AA07100 | H01 Yellow-Green Φ3.7 |
| AA08500 | H01 Yellow-Green Φ3.7G |
| AA07900 | H01 Medium pruple Φ5.0 |
| AA07200 | H01 Red Φ5.0G |
| AA08000 | H01 Medium pruple Φ7.0 |
| AA07300 | H01 Dark Red Φ7.0G |
| AA08100 | H01 Medium pruple Φ10.0 |
| AA07400 | H01 Navy Φ10.0G |
| AA08200 | H01 Medium pruple Φ15 |
| AA07500 | H01 White Φ15.0G |
We also have these brand nozzle on hot sale:
