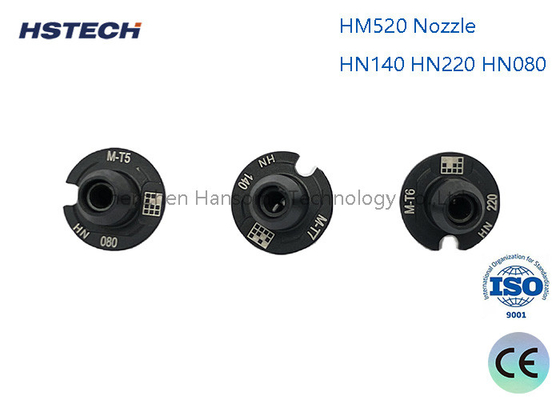

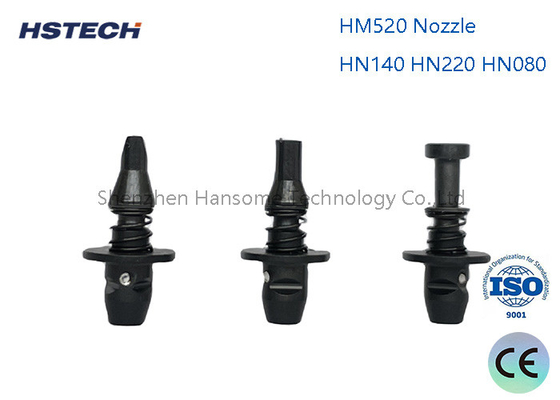

Easy-To-Operate SMT Nozzle HM520-HN140 HN220 HN 080 For Pick And Place Machine

Easy-To-Operate SMT Nozzle HM520-HN140 HN220 HN 080 For Pick And Place Machine

Introduce

Placement machine for SMT (Surface Mount Technology) production line

M520 nozzle is a nozzle equipment produced by Hanwha Precision Machinery Co., Ltd., mainly used in HM520 series chip placement machines.It is manufactured with high-quality materials for durability and reliability, allowing it to maintain stable performance during high-speed placement processes. Consider flexibility and ease of operation to meet the processing needs of different components

Features

1.Versatility: The HM520 nozzle has a wide range of component processing capabilities and can mount small chips to odd-shaped components, and is suitable for components of different sizes and types.

2.High reliability: HM520 nozzle is equipped with a suitable Height Sensor, which can automatically compensate for the difference in mounting height caused by PCB bending, improving the accuracy and reliability of mounting.

3.Flexible production: The HM520 nozzle can handle components from 0402 size to a maximum size of 55mm, and can mount components up to 15mm high. Its flexibility enables the production line to adapt to different production needs.

4.Easy operation: The HM520 nozzle uses Fiducial Camera to identify the ANC and nozzle barcode, making it easy to manage the nozzle. At the same time, it supports one-click replacement of ANC Block, which is convenient and fast

Scope of application

HM520 nozzles are widely used in the electronics manufacturing industry, especially in SMT production lines.
It is suitable for various sizes and types of electronic components, including chip resistors, chip capacitors, diodes, transistors, etc.

Application

Application areas
1.Electronic manufacturing industry: Samsung nozzles can be used on placement machines to pick up and place electronic components, such as resistors, capacitors, integrated circuits, etc. They play a key role in the electronics manufacturing process, ensuring accurate placement and soldering of components.

2.Communication equipment manufacturing: In the communication equipment manufacturing process, the placement machine nozzle is used to mount various electronic components, such as mobile phones, routers, switches, etc. The selection and use of Samsung nozzles can improve production efficiency and quality.

3.Automotive electronics manufacturing: The automotive electronics field requires the placement of a large number of electronic components, such as automotive ECUs (electronic control units), sensors, instrument panels, etc. Samsung nozzles can be used on placement machines to ensure accurate component placement and reliable connection.

4.Industrial automation: In the field of industrial automation, the placement machine nozzle can be used to mount various industrial electronic components, such as PLC (programmable logic controller), sensors, servo drives, etc. The selection and use of Samsung CN065 nozzle can improve production efficiency and quality.

5.LED lighting manufacturing: The manufacturing of LED lighting products requires the mounting of a large number of LED chips and electronic components. SMT nozzles can be used to accurately pick up and place LED chips and other electronic components to ensure product quality and performance

We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
