| Place of Origin: | Japan |
| Brand Name: | YAMAHA |
| Certification: | CE |
| Model Number: | YRM20-8105A 8106A 8107A |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Yamaha Nozzle | Usage: | For YAMAHA Machine |
|---|---|---|---|
| Part Number: | YRM20-8105A 8106A 8107A | Condition: | Original New, Or Copy New |
| Package: | Foam Package+Plastic BOX+Carton Box | Shipping Term: | TNT DHL FEDEX EMS UPS |
| Type: | SMT Machine Parts | Customized: | Accept |

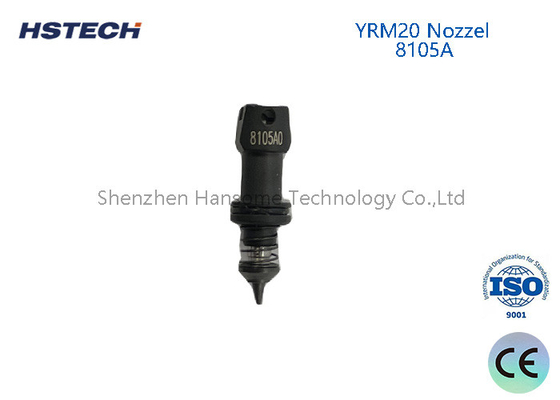

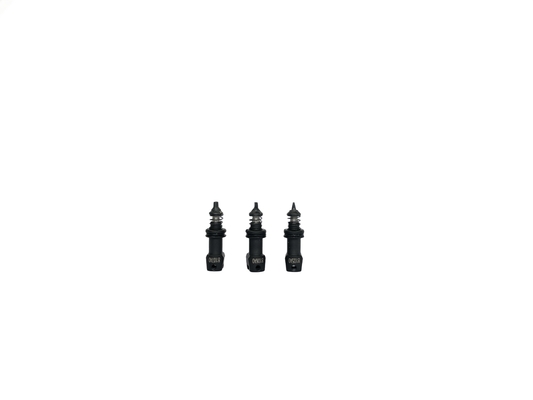

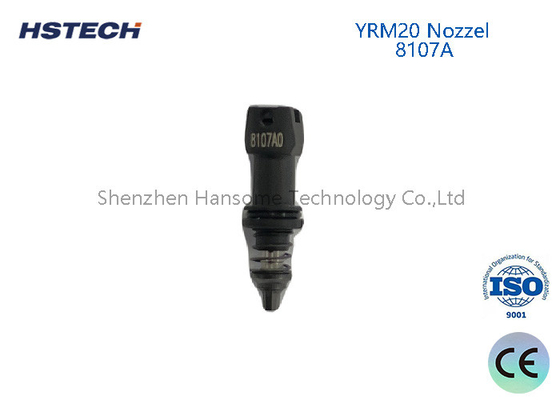

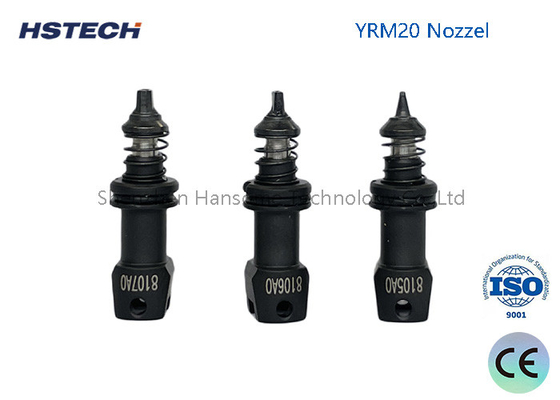

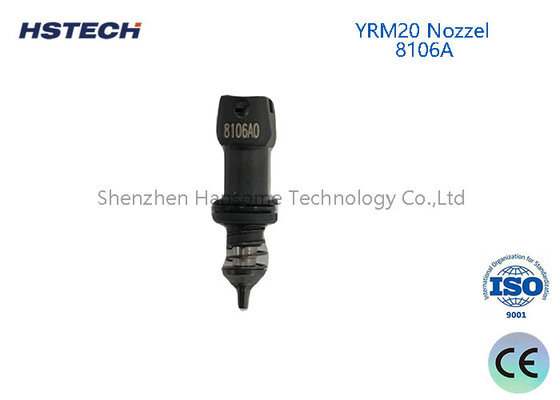

Precision SMT Nozzle For Yamaha YRM20-8105A 8106A 8107A Pick And Place Machine
Introduce
1. The suction nozzle is a key component of the placement machine, used to pick up and place SMT components.
2. The suction nozzle uses vacuum adsorption to suck the components, and blows air to place the components on the designated position on the circuit board.
Features
| Design Features |
The component contact surface of Yamaha nozzles is usually designed to be centrally symmetrical to ensure stability and accuracy when picking up components |
| Features |
1.The suction nozzle is a key part of the placement machine for placing components.
2.It uses the adsorption effect of vacuum to absorb the components and places the components on the coordinate position of the circuit board by blowing air.
3.The center of the nozzle and the center of the component and the spatial center of the image obtained should coincide to ensure ideal suction results.
4.When the nozzle is used as the background, it can enhance the contrast of the component image and make it more clearly visible |
| Material characteristics | The nozzle body is made of high-quality steel and has undergone special heat treatment. The inner hole has been precision ground to make the spring fit accurately and slide smoothly |
Application
| SMT patch process | Widely used in the patch process on SMT (surface mount technology) production lines |
| Picking up and placing electronic components | suitable for picking up and placing various electronic components, such as chips, resistors, capacitors, etc., to achieve efficient patch production |
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
