| Place of Origin: | Japan |
| Brand Name: | YAMAHA |
| Certification: | CE |
| Model Number: | YS-301A 302A 303A/314A |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Yamaha Nozzle | Usage: | For YAMAHA YS12/YG12/YS24 Machine |
|---|---|---|---|
| Part Number: | YS-301A 302A 303A/314A | Condition: | Original New, Or Copy New |
| Package: | Foam Package+Plastic BOX+Carton Box | Shipping Term: | TNT DHL FEDEX EMS UPS |
| Type: | SMT Machine Parts | Customized: | Accept |

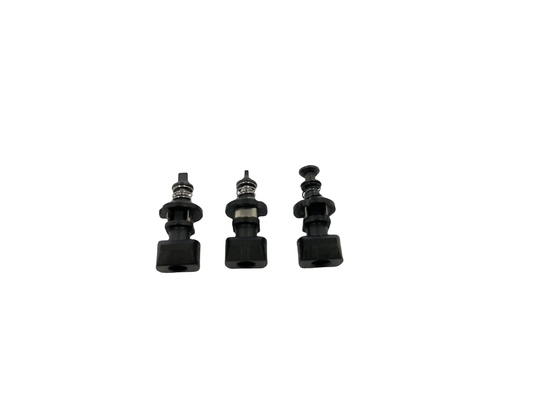

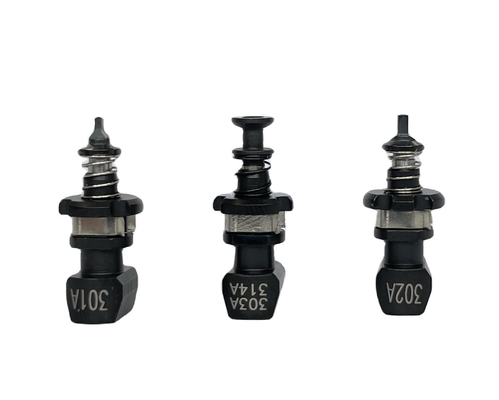

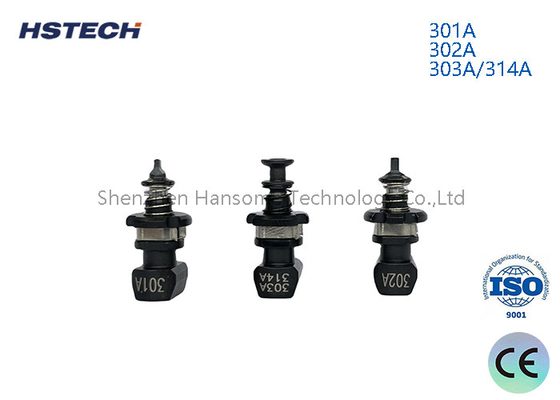

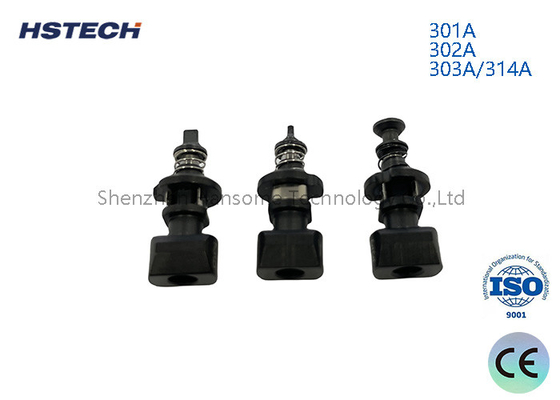

Precision SMT Nozzle Part YS-301A 302A 303A/314A Pick And Place Nozzles For YAMAHA YG12 YS24 Pick And Place Machine
Introduce
YS-301A 302A 303A/314A is a suction nozzle of the Yamaha brand, mainly used in YS series placement machines.
1. Precision and speed: YS-301A 302A 303A/314A nozzle has the characteristics of high precision and high speed. Its accuracy can reach 0.05mm and its speed can reach 36000CHIP
2. Nozzle type: YS-301A 302A 303A/314A nozzle is divided into two types: standard type and narrow adjacent surface type.
(1) Standard type nozzle: suitable for general placement work.
(2) Narrow adjoining surface type nozzle: suitable for placement work where adjacent components are densely packed.
3. Material and durability: The YS12 nozzle is made of original black material, which is anti-static and durable. The nozzle body is made of high-quality steel and has undergone special heat treatment. The inner hole has been precision ground. The spring mouth has high fitting accuracy and smooth sliding.
Features
1. Nozzle material: The nozzle is made of original black material, which has anti-static properties, will not turn white, and is durable.
2. Body material: The body of the 301A nozzle is made of high-quality steel and has undergone special heat treatment to ensure its strength and durability.
3. Inner hole precision: The inner hole of the 301A nozzle has been precision ground and has high matching accuracy, making the nozzle slide smoothly.
4. Applicable models: 301A nozzle is suitable for YAMAHA YS12 placement machine
Application
| SMT patch process | YS12 nozzle model 301A is widely used in the patch process on SMT (surface mount technology) production lines |
| Picking up and placing electronic components | suitable for picking up and placing various electronic components, such as chips, resistors, capacitors, etc., to achieve efficient patch production |
YAMAHA YG12/YS12/YS 24 Series Nozzle
Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE
Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN
Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP
Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.
Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2
Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302
Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314
Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.
Yamaha YG12/YS12/YS24: 90990-17J013 O-RING
Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317
Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.
Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A
Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING
Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
