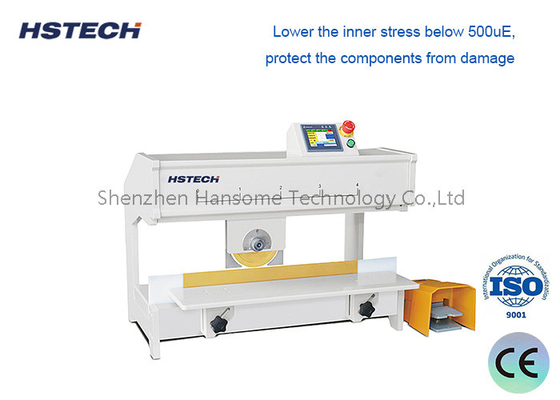

MITSUBISHI PLC Touch Screen V-cut PCB Separator with Counting Function

MITSUBISHI PLC Touch Screen V-cut PCB Separator with Counting Function

  • MITSUBISHI PLC Touch Screen V-cut PCB Separator with Counting Function
MITSUBISHI PLC Touch Screen V-cut PCB Separator with Counting Function
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-VM-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: V-cut PCB Separator Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Signal: SMEMA Application: Electronic Assembly
Power Supply: AC220V Type: Automatic

MITSUBISHI PLC Touch Screen V-cut PCB Separator with Counting Function




Features:

1, It can cut rapidly regardless of the quantity, very economic.

2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.

4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.

5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.

6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.

7, The starting cutting position can be set freely, which can ensure the long lifespan.

8, This machine equipped with counting function, can facilitates the data after the production.


Specfication:





Model VM-400 VM-600
Voltage 110V/220V,50/60Hz 110V/220V,50/60Hz
Max cutting length 400mm 600mm
PCB thickness 0.8~3mm 0.8~3mm
Separation speed 600mm/sec 600mm/sec
Separation type Circur and linear blade Cirlular and linear blade
Components height 0~70mm 0~70mm
working temperature 30~55℃ 30~55℃
Machine dimension 420*520*680mm 620*720*1680mm
Weight 50kg 60kg



Packaging:

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 1

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator 2
