| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-NK250 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | NG OK PCB Unloader | Transport Height: | 910±20mm |
|---|---|---|---|
| Transportation Direction: | L~R, Or R~L | Board Collect Time: | Each Approx 6 Seconds |
| Magazine Change Over Time: | Approx 30seconds | Track Fixed Side: | Front Side |
| PCB Thickness: | Min 0.6mm | Pitch Selection: | 1-4(10mm Pitch) |
| Power Supply: | 220V,50/60Hz,±10% | Power: | 0.05kW |
Description

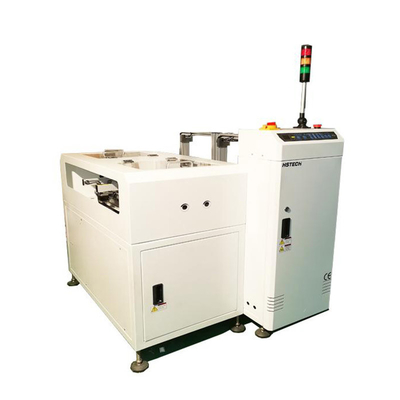

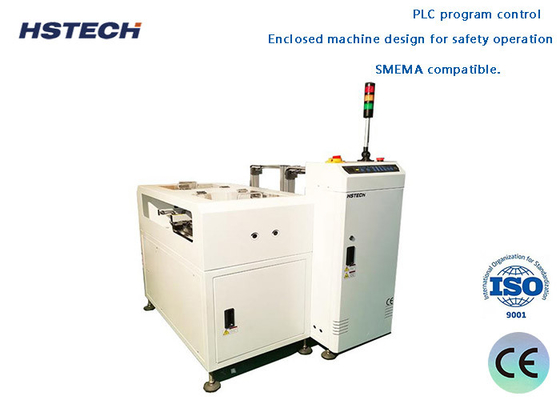

This unit is used after the AOI, by receiving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.
Features
1.PLC program control.
2.Strong,firm
3.Optional control button or touch screen control up to customers.
4.Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guaranty during loading&unloading.
6.Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10, Three color tower light display.
11. SMEMA compatible.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.
|
Specification
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
