Individual Button Timer For Each Tank Is Setted Individual Solder Paste Timer

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-SP-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Solder Paste Timer	Warranty:	1 Year
Control:	Touch Screen	PLC:	MITSUBISHI
Relay Brand:	Schneider	Optoelectronic Switch:	OMRON
Material:	Aluminum Alloy	Condition:	New
Signal:	SMEMA	Application:	Electronic Assembly
Color:	Silver	Control System:	PLC
OEM/ODM:	Available	Power Consumption:	200W
Power Supply:	AC220V	Type:	Automatic

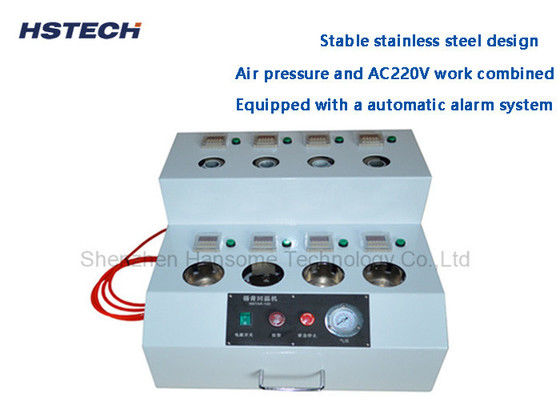

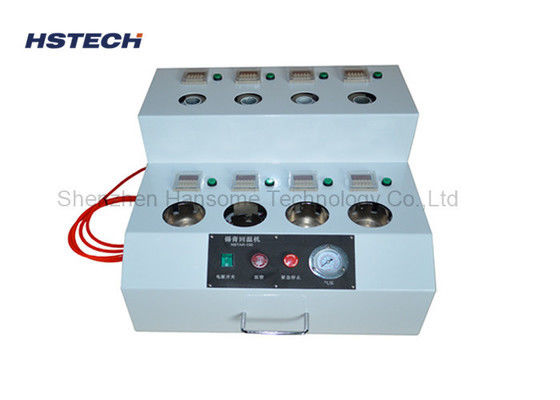

Individual Button Timer For Each Tank Is Setted Individual Solder Paste Timer

Introduction

This machine used to timing the solder paste back to room temperature after it taken out from the referigator, each solder paste tank equipped with a LED display timer.

Feature

1, 4 tanks for the springe size solder paste and 4 tanks placed the standard size solder paste.

2, Timer for each tank is setted individual.

3, Air pressure and AC220V work combined.

4, Each tank has a individual button, press the button, the solder paste will be fixed automized, can not move before finished.

5, After finished timing, the alarm will ring to remind the operator.

6, If the timing timer is not setted right, you can press the emergency button to stop the operating.

7, The machine is stable stainless steel design, durable.

Specification

Model		HS-SP-8
Aging tank		Top for springe size, bottom for standard size
Timer		LED display timer
Tank size		For standard solder paste, others need customized
Power		AC220V, 50Hz
Air Pressure:		0.4Mpa
Placing tank:		8 tanks
Machine Demension:		500520320mm(WDH)
Gross Weight:		22KG
