| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-P223 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Semi-auto 1.2M Screen Printer | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | Relay Brand: | Schneider |
| Optoelectronic Switch: | OMRON | Material: | Aluminum Alloy |
| Condition: | New | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Type: | Automatic |

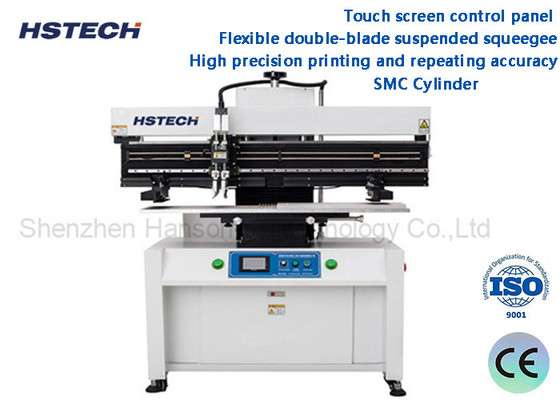

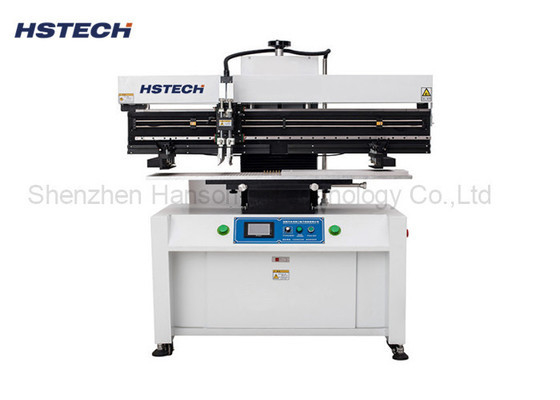

Adjusted Up And Down Freely High Quality Parts Semi-Auto 1.2M Screen Printer
Introduction
This unit solder paste printing machine is used for printing the 1.2meter LED tube PCB, it's semi-automatic machine, manul loading, automatic printing, it's used before the pick and place machine.
Features
1, Special design for 1.2meter LED tube light PCB, T8 or T5.
2, The machine adopts microprocessor to control and touch screen to display the menu and operation interface.
3, Using high quality parts, like adopts Delta smooth drving frequency inventor to ensure the stable scraper speed.
4, The squeegee can adjusted up and down freely to adjust the corresponding height with the stencils, so that the solder paste can be printed on the PCB board evenly and clearly.
5, The scraper printing table also can be adjusted, froth or back.
6, The squeegee stress on the PCB boards can be adjusted based on the length of different types of squeegees.
7, The menu on the touch screen can set the pause time of the stencil independently.
8, The PCB positioning methods has various reference postion.
9, The touch screen of the machine can display and record the printing time automatically.
10, The machine equipped with emergency stop button once meet accidents.
11, The machine also support glue printing, improve efficiency and save cost.
| Model | HS-P223 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 1200x320mm |
| Printing table size | 1300x350mm |
| Stencil frame size | 470x370~2000x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 1680*900*1680mm |
| Machine weight | Approx350kg |
