Using Windows XP/Win7 Operation Interface High Adaptability Steel Mesh Frame Clamping System Automatic Stencil Printer

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-GSE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Automatic Solder Paste Printer	Warranty:	1 Year
Control:	Touch Screen	Relay Brand:	Schneider
Optoelectronic Switch:	OMRON	Material:	Aluminum Alloy
Condition:	New	Signal:	SMEMA
Application:	Electronic Assembly	Color:	Silver
Control System:	PLC	OEM/ODM:	Available
Power Consumption:	200W	Type:	Automatic

Using Windows XP/Win7 Operation Interface High Adaptability Steel Mesh Frame Clamping System Automatic Stencil Printer

Introduction

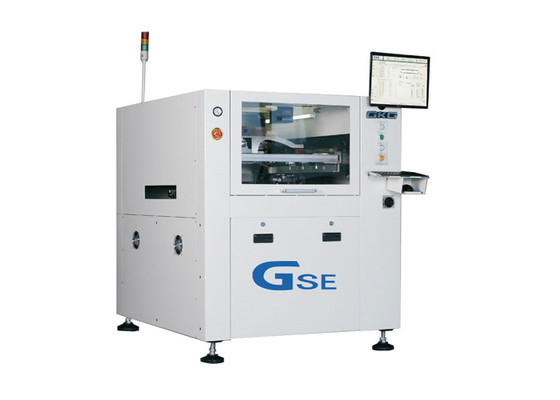

GLE Automatic solder paste printing machine is a high-end machine for SMT large-scale applications. The width of Gt-S is only 2830mm. It can perfectly meet the printing process requirements of 01005,0.3pitch and other fine spacing, it's high precision and high speed.

Features

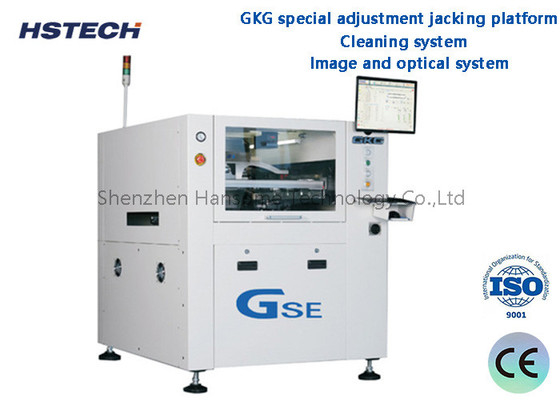

1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.

2, Cleaning system: GKG cleaning system equipped with three cleaning methods: dry cleaning, wet cleaning, vacuum. which can be combined to use. It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency.

The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste in the mesh, which can achieve effective automatic cleaning function.CCD part and c leaning system is separated, when CCD working, CCD part independently move to reduce the servo motor load and improve the machine speed and accuracy.

3, Image and optical system. Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged mark points), applicable for tin plating, coppering, gold plating,tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model,able to ensure high accuracy.

4, High adaptability steel mesh frame clamping system. Able to print all kinds of size screen frames, and quickly change modular production line.

5, Using Windows XP/win7 operation interface, with good man-machine dialogue function, and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file. easy to switch Chinese/English interface, with operation log, fault record / fault self-diagnosis / fault analysis prompt / light alarm and other functions.

6, 2D paste printing quality test and analysis, Able to inspect shift ,insufficient paste, missing and bridge and other defects to ensure the printing quality.

Specification

Model	GSE
Stencil size	370x370mm(min size)
	737x737mm(max size)
	20-40mm(thickness)
Max PCB Size	400x340mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
PCB warpage	max 1% PCB diagonal
Transport height	900±40mm
Transport direction	L-R,R-L
Transport speed	max 1500mm/s, can be adjustment
Transport method	One stage
WIdth adjustment	automatic
I/O interface	SMEMA
PCB positioning (support method)	Magnetic pin/support block/up-down table
PCB clamping system	Patented over the top clamping/side clamping
Print head	Two independent motorised printheads
Squeegee Pressure	0.5~10Kg (Program Control)
Print Speed	6-200mm/sec
Print Mode	One /Twice
Squeegee Type	Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Cleaning System	Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
CCD FOV	8x6mm
Machine adjust range	X: ± 3mm, Y:± 7 mm , θ:± 2°
Vision	Look Up/Down Optics Structure/CCD/Geometry Pattern-match

Whole Machine Specification

Repeat Position Accuracy	±0.01mm
Printing Accuracy	±0.025mm
Cycle Time	＜8 Sec
Product Changeover	old:<3 mins,new:<5 mins
Air supply	4~6 kgf/cm
Power supply	AC:220±10%,50/60HZ, 2.5KW
Control method	PC
Operation system	Windows XP/Win7
Machine Dimensions	1158(L) x 1362(W) x 1463 (H)mm
Machine Weight	Approx: around 1000Kg
