Name: Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400
Brand: HSTECH
SKU: HS-VM-400
Rating: 4.7 (191 reviews)

Home Products PCB Depaneling Equipment

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-VM-400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	V-cut PCB Separator	Warranty:	1 Year
Control:	Touch Screen	PLC:	MITSUBISHI
Relay Brand:	Schneider	Optoelectronic Switch:	OMRON
Material:	Aluminum Alloy	Condition:	New
Signal:	SMEMA	Application:	Electronic Assembly
Color:	Silver	Control System:	PLC
OEM/ODM:	Available	Power Consumption:	200W
Power Supply:	AC220V	Type:	Automatic

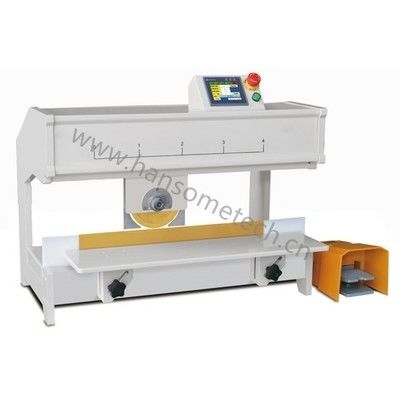

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator

Specfication

Model	VM-400	VM-600
Voltage	110V/220V,50/60Hz	110V/220V,50/60Hz
Max cutting length	400mm	600mm
PCB thickness	0.8~3mm	0.8~3mm
Separation speed	600mm/sec	600mm/sec
Separation type	Circur and linear blade	Cirlular and linear blade
Components height	0~70mm	0~70mm
working temperature	30~55℃	30~55℃
Machine dimension	420520680mm	6207201680mm
Weight	50kg	60kg

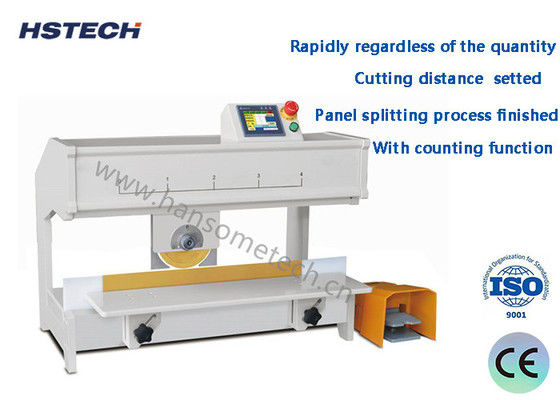

Features

1, It can cut rapidly regardless of the quantity, very economic.

2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.

4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.

5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.

6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.

7, The starting cutting position can be set freely, which can ensure the long lifespan.

8, This machine equipped with counting function, can facilitates the data after the production.

Machine dimension
Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400 0

About Packaging

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400 1

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400 2

Cutting Distance Setted Compare With Manual Operation V-Cut PCB Separator HS-VM-400 3
