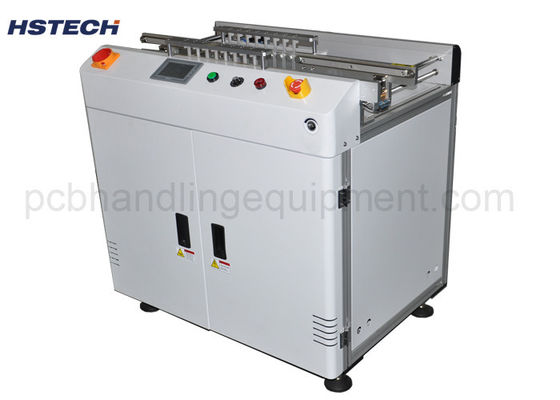

Mitsubishi PLC Aluminum NG PCB Reject Conveyor

Mitsubishi PLC Aluminum NG PCB Reject Conveyor
Mitsubishi PLC Aluminum NG PCB Reject Conveyor Mitsubishi PLC Aluminum NG PCB Reject Conveyor

Large Image :  Mitsubishi PLC Aluminum NG PCB Reject Conveyor

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-CVN4600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Reject Conveyor Suitable PCB Dimension: 50*50~550*460mm
Power Supply: AC100-230V PLC: MITSUBISHI
Sensor: Sick Contol: Touch Screen
PCB Stock Capacity: 5pcs Or 10pcs Signal: SMEMA
High Light:

Aluminum PCB Reject Conveyor

,

Mitsubishi PLC PCB Reject Conveyor

Mitsubishi PLC Aluminum Track Stock 10pcs NG PCB Reject Conveyor



Features



1, Reject, inspect and by-pass modes all available.

2, Modular design.

3, Stability enhanced by robust design.

4, Laser carved stainless steel side guide for superior quality and durability.

5, Ergonomic design arm rest.

6, Smooth and parallel width adjustment(lead screw).

7, Different lengths available upon request.

8, Variable speed control.

9,SMEMA compatible.



Specification



Function This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Transport height 910±20mm
Transportation direction L~R, or R~L(optional)
Transporting speed 0.5~20 m/min or specify
Power supply AC100-230V,50/60Hz,single phase
PLC brand Mitsubishi
Sensor brand Sick
Driver brand Meanwell
Power consumption 100VA max
Air pressure 4-6bar
Air consumption Max 10L/min
Communication SMEMA



Model HS-CVN350 HS-CVN460
Efficient PCB length 50*50~450*350mm 50*50~550*460mm
Machine dimension 1000*690*930mm 1000*800*930mm
Weight 70kg

90kg



Mitsubishi PLC Aluminum NG PCB Reject Conveyor 0



Transporting rail



Mitsubishi PLC Aluminum NG PCB Reject Conveyor 1

Mitsubishi PLC Aluminum NG PCB Reject Conveyor 2



Lifting Sturcture



Mitsubishi PLC Aluminum NG PCB Reject Conveyor 3



Electric control



Mitsubishi PLC Aluminum NG PCB Reject Conveyor 4
