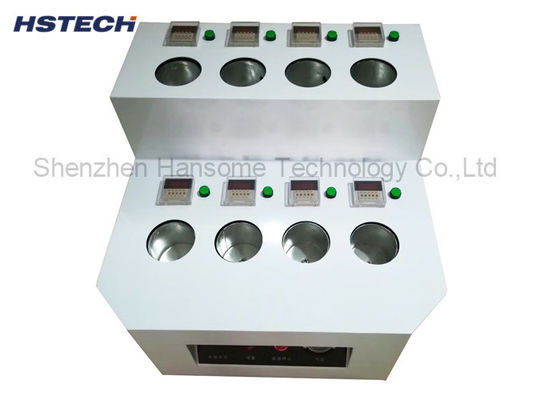

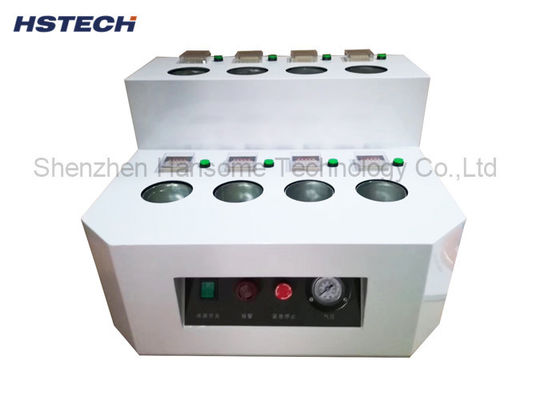

8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle

8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle
8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle 8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle

Large Image :  8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SP-8N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 2~3 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: Solder Paste Thawing Machine Other Name: Solder Paste Warm Up Machine
Aging Tank: 8 Tank, Or Customized Power: 220V Or 110V
Time Setting: 999hours Warranty: 1 Year
High Light:

solder paste check right machine

,

solder paste aging machine

New 8 Tank Solder Paste Thawing Machine for Standard Size Bottle or Customized



Introduction



This automatic solder paste thawing machine used as a timer, when the solder paste is taken out from the refrigerator, the temperature is low, and this machine use the timer to timing the solder paste back to room temperature,it's effectively control the temperature of the solder paste to ensure the solder paste activity.



Features



1, Accurate control the solder paste temperature, make sure the activity of the solder paste before screen printing.
2, PLC Control, import high quality parts assemblying.
3, Standard size tank, suitable for difference model solder paste.
4, Electricity interruptted protection,
5, Aging tank with FIFO function, after timing, take out the solder paste during order.
6, In the case of out of power accidently, even if not reach setted time, solder paste bottle will automatically pop up.
7, With alarm system, it rings when finished timing, also equipped with a emergency button.

Specification

Model HS-SP-8N
Timer LED display timer
Solder paste size 500g standard size
Time setting range max 999 hours
Tank size For standard solder paste, others need customized
Power AC220V, 50Hz
Air Pressure: 0.4Mpa
Placing tank: 8 tanks
Machine Demension: 500*520*320mm(W*D*H)
Gross Weight: 30KG



8 Tank Solder Paste Thawing Equipment PLC Control For Standard Size Bottle 0
