AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer

  • AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer
  • AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer
  • AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer
AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,TUV,ROHS
Model Number: HS-P224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Semi-auto Screen Printer Max PCB Dimension: 350x280mm
Working Table Size: 500x320mm Max Frame Size: 470x370~750x550mm
Machine Size: 900x900x1680mm Weight: Around 300kg
High Light:

solder paste check right machine

,

solder paste aging machine

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer



Introduction



This semi-automatic solder paste printing machine is used at the start of SMT production line, for printing solder paste with scraper.

Put the PCB which need to be printed is fixed on the printing positioning table, and then printing the solder paste or the red glue corresponding pad through the steel mesh by the left and right scrapers of the printing machine, after printed,the PCB will transport to the downstream pick and place machine via the conveyor.



Specification



Model HS-P224
Product name Semi-automatic stencil printer
Max PCB size 350x280mm
Printing table size 500x320mm
Stencil frame size 470x370~750x550mm
Printing accuracy ±0.02mm
PCB thickness 0.2~2.0mm
Squeegee speed 0-100mm/s
Repeat accuracy ±0.02mm
Power supply Single phase,AC220V/110V, 50/60Hz
Machine power 100W
Air pressure 5-7kg/cm³
Machine size 900*900*1680mm
Machine weight Approx 300kg



Features



1. The machine adopts PLC control system.
2. The machine built-in auto 4-digit counter.
3. Vertical constructure, the screen frame lift up and down verticaly by electricity, driving transversa stroke of printing head left and right action by the linear guide.
4. The screen frame can be adjusted up and down to meet the differnet height.
5. Four point stencil positioning, the printing accuracy reacy ±0.02mm,flexible stencil frame, can use different size stencil.

6, The squeegee can be adjustable, convenient for lead-free stainless steel scraper, 200-350options.

7, Flexible PIN thimble to positioning the PCB, can print the double side PCB.

8, LED touch screen can adjust the scraper speed, also use high quality HIWIN brand linear guide.

9, The scraper left and right adjustment use the Frequency converter control, can set the printing speed on the screen, make sure the printing speed is consistently, then the printing thickness more evenly.

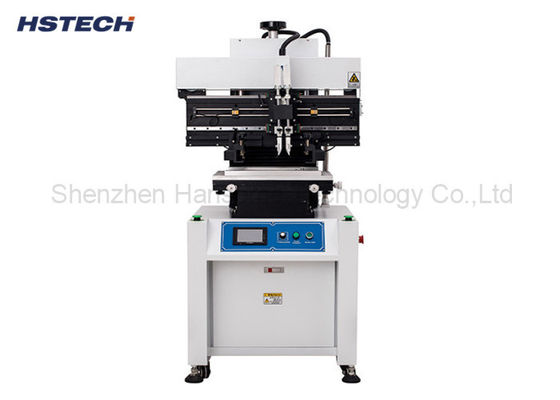

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer 0

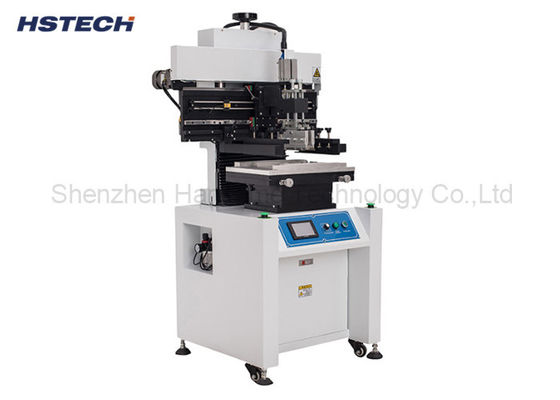

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer 1

AC220V PLC Control System Stainless Steel Semi-Auto Solder Paste Printer 2
