| Product Name: | PCB Turn Conveyor | Other Name: | PCB Turning Board Handling Machine |
|---|---|---|---|
| Power Supply: | AC100-230V,50/60Hz | Control: | PLC |
| Operation: | LED Button | Signal: | SMEMA |
| High Light: | Rail Observation Window PCB Handling Equipment,PLC Control PCB Handling Equipment,LED Button PCB Turn Conveyor |
||

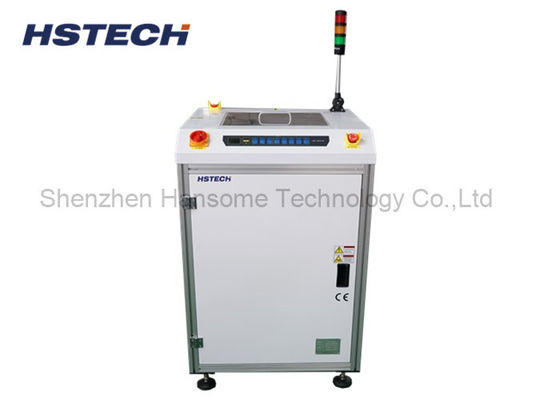

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor
Introduction
This machine used in the SMT/PCBA production line for turn the PCB flow direction.
Features
1, Change the PCB flow direction in 90,180,270 degree.
2, Fixed rail selection based on customer's requirement.
3, Soft LED button control, traditional but easy operation.
4, Top side safety transparent cover, operation can watch the whole working process.
5, Enclosed design with built-in torque limiter ensure high level safety.
6, Hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smooth and parallel width adjustment(lead screw).
9,SMEMA compatible.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
