NG OK PLC Programing Smt Magazine Loader ESD Conveyor Belt

NG OK PLC Programing Smt Magazine Loader ESD Conveyor Belt
NG OK PLC Programing Smt Magazine Loader ESD Conveyor Belt NG OK PLC Programing Smt Magazine Loader ESD Conveyor Belt

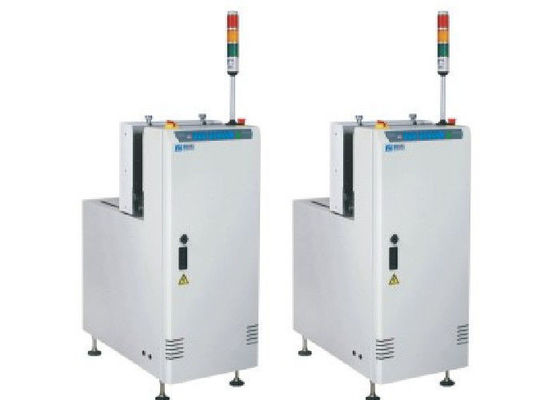

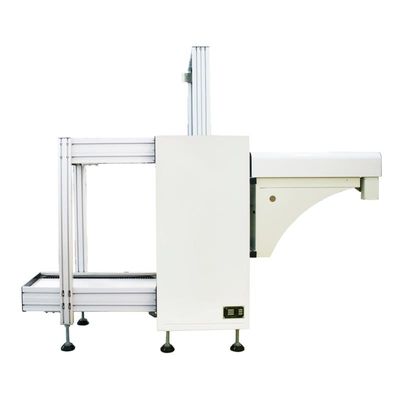

Large Image :  NG OK PLC Programing Smt Magazine Loader ESD Conveyor Belt

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-NK250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: NG/OK Unloader PCB Transporting Height: 910±30mm
PCB Dimension: 50*50~330*250mm Power Supply: AC220V, 50/60Hz
Magazine Qty: Each Rail 2 Magazines Warranty: 1 Year
Usage: SMT Production Line,SMT Assembly Line Condition: New
High Light:

NG OK Smt Magazine Loader

,

PLC Programing Smt Magazine Loader

,

ESD Conveyor Belt SMT Unloader

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader



Intorduction



This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.



Technical details



Function Collect the NG/OK boards separately by receiving the signal.
Transport height 910±30mm
Transportation direction L~R, or R~L
Board collect time Each approx 6 seconds
Magazine change over time Approx 30seconds
Track fixed side Front side
Operation side Front side
Conveyor belt ESD
PCB thickness Min 0.6mm
Pitch selection 1-4(10mm pitch)
Power supply 220V,50/60Hz,±10%
Power 0.05kW
Air pressure 4-6Bar
Air consumption Max 15L/min
Number of magazines Upper:1 magazine, Bottom side:2 magazines
Signal SMEMA
Options

1, Touch screen control mode.

2, Automatic width adjustment.

3, Magazines quantity up to customer requirement.





Features



1, PLC programing control.

2, Using friendly ‘soft touch’ LED membrane control panel

3, Selectable pitch setting.

4, Toggle level clamps provided for magazine alignment.

5, Pneumatic pusher’s pressure regulated.

6, High throughput with short magazine change-over time.

7, Collect NG/OK board from AOI, automatic store the NG/OK boards.

8, Standard SMEMA communication interface.



Model



Model HS-NK250 HS-NK330 HS-NK390 HS-NK460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
PCB thickness Min 0.6mm Min 0.6mm Min 0.6mm Min 0.6mm
Magazine size 355*320*563mm 460*400*563 535*460*570mm 535*530*570mm
Machine dimension 1950*1600*1200mm 2300*1760*1200mm 2500*1880*1200mm 2500*2160*1200mm
Weight 220kg 280kg 340kg 380kg
