| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-S331R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 5~7 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
| Product Name: | Auto Soldering Robot | Other Name: | Desktop Soldering Machine |
|---|---|---|---|
| Working Bed: | Single Bed, Or Double | Soldering Tip: | 0.6~1.0mm |
| Rotation: | 360degree | Condition: | Brand New |
| Warranty: | 1 Year | Usage: | Pcb Soldeing,Welding,Circuit Board Soldering |
| High Light: | auto soldering machine,automated soldering equipment |
||
PCB Soldering Robot Single Bed 0.8mm Solder Tip Manual Programming
Introduction

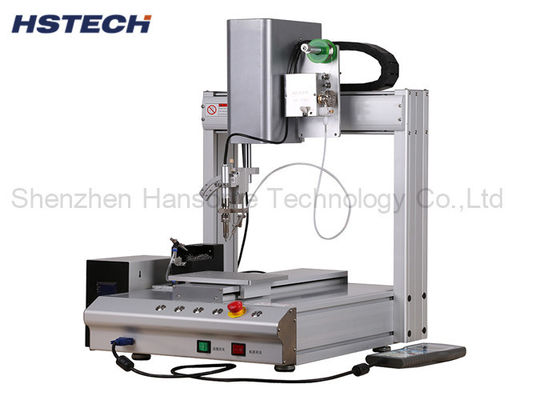

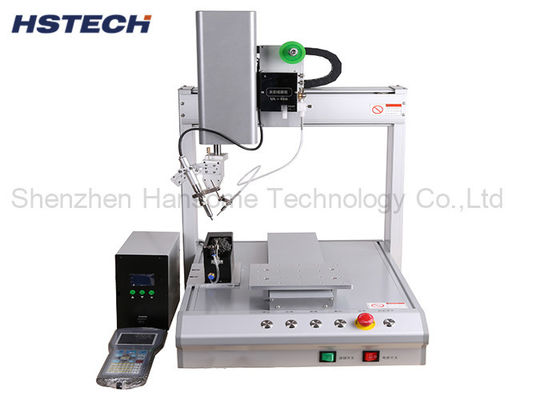

This desktop auto soldering robot is a 4 axis working machine, with single bed to fix the fixtures, X,Y,Z moving system, also available for Rotation. The machine is programming by teach box, need set every soldering points manual, it suitable for spot welding, drag welding, curve welding, circle welding,irregular curve continuous welding. Also the programs can be copied and use directly, and it max can store 999 programs,also if similar programs, we can just do some small adjustment, no need to re-program.
The machine is very heavy and stable, so that ensure the working precision. Currently many factories use this automatic equipments to save the labor cost, improve the production efficiency, and produce more precision high end product at the same time.
Features
1, The machine using the constant control system, it's very stable.
2, Using high end material to produce the machine, the machine is a high end product.
3, With ±0.02mm repeated precision to achieve precise soldering.
4, Optional automatic smoke collection to keep the air clean, according to customer's requirement, currently many customer request equipped with this smoke cleaner.
5, Program can be fast by re-set ,insert and delete the spot of the soldering or full modification.
6, The machine suitable for solder tin diameter at 0.6~1.0mm.
7, With ±0.02mm repeated precision to achieve precise soldering.
8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
9.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Application
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
