| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-S331R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 5~7 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
| Product Name: | Automated Soldering Machine | Other Name: | PCB Soldering Machine |
|---|---|---|---|
| Working Station: | Single Station, Optional | Soldering Head: | Single Head |
| Rotation: | 360degree | Condition: | New Production Machine |
| Type: | Desktop Model | Warranty: | 1 Year |
| High Light: | auto soldering machine,automated soldering equipment |
||

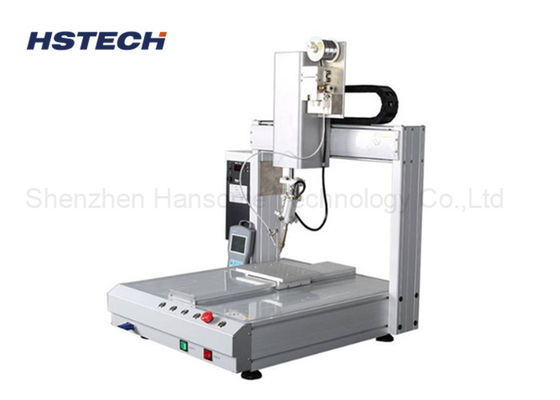

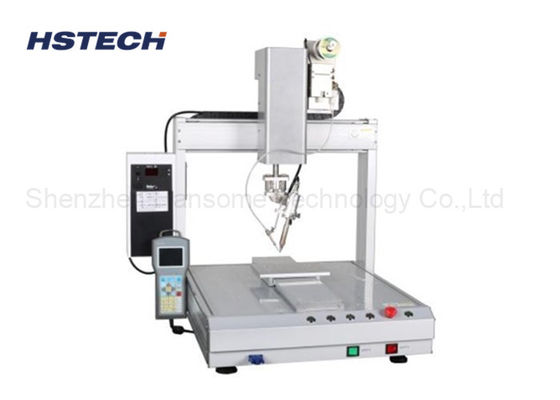

0.6~1.0mm Solder Wire Processing Date SMT Desktop Automated Soldering Machine
Introduction
This desktop SMT Automatic soldering machine is a 3 axis automatic soldering robot. Available for spot welding, drag welding, curve welding, circle welding,irregular curve continuous welding.The proceeding program can be copied, and Max can store 999 programs,also different program can be changed simply for different product with one button, no need to re-program. The machine is made of high quality parts, like use Hi-win linear guide, and the machine body is very heavy and durable, make sure the soldering accuracy. Also the machine is easy maintenance and operation, great improve the production efficiency.
Features
1, Stable machine body,high-strength solder head can be customized for high quality welding.
2, Teach box programming, manual set every soldering points.
3, Program can be fast by re-set ,insert and delete the spot of the soldering or full modification.
4, The feeding tins at anytime to apply for multiple welding and high efficiency.
5, Use high end soldering temperature controller, control the temperature more accurately and more durable.
6, With functions of calibration of R axis, correction of wrong operations.
7, With ±0.02mm repeated precision to achieve precise soldering.
8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
9. Optional automatic smoke collection to keep the air clean, according to customer's requirement.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Application
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
