Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head

Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head
Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head

Large Image :  Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-DS441/HS-DS5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Automatic Soldering Machine Other Name: Desktop Soldering Machine
Moving Range: 400x400x100mm Soldering Head: Double
Platform: Single/Double Optional Voltage: AC220V/110V
Usage: Pcb Soldeing,Welding,Circuit Board Soldering Warranty: 1 Year
High Light:

auto soldering machine

,

automated soldering equipment

Big Storage Space Advanced Motion Control Belt Automatic Soldering Machine



Introduction



This robotic soldering machine adopts double soldering head, single platform or double platform with options, also the soldering traveling range can be customized based on customers's product size. This machine is suitable for some special products for fast working efficiency. Customers under considering of their products, use one machine instead of two machines. This unit with difficult process and soldering processing, especially suitable for PCB welding of mixed circuit boards, heat sensitive components and sensitive devices in SMT back-end process.



Specification



Model HS-DS441
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 400*400*100mm
R axis none
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant, manual programming
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD only
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 85kg
Machine dimension

515*585*800mm



Features



1, Doulble soldering head, more efficiency, suitable for some special products.

2, Travel ranging standard at 400*400mm, and double platform with 500*300*300mm, also could be customization.

3, Manual programming, manual set every soldering point.

4, Using Hiwin brand linear guide, and timing belt.

5, The whole machine is made of aluminum, no deformation, no rust, stable operation.

6, The working program can perform point-to-point, block-to-block copying and shorten programming time.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the soldering iron.

8, Optional solering smog cleaning device.

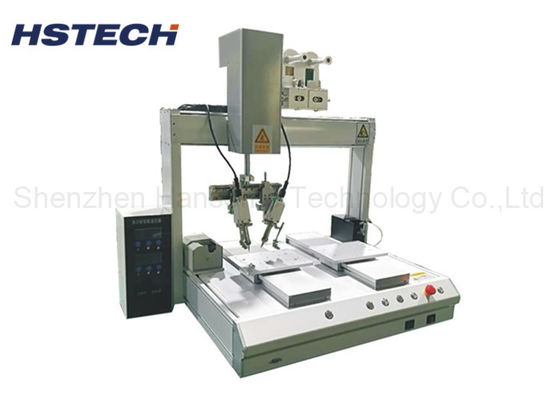

Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head 0

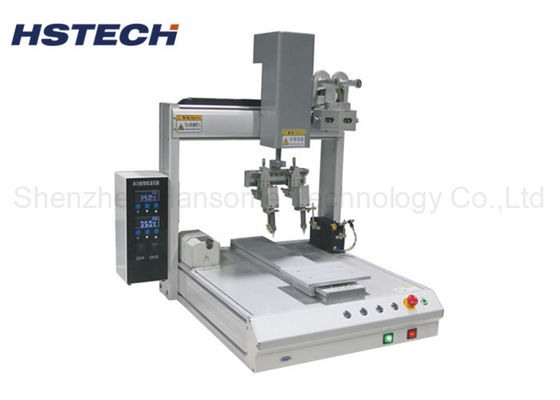

Big Storage Space Belt Automatic Soldering Robot Motion Control Double Head 1
