| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-A306 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden pacakge |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |
| Product Name: | Auto Feeding PCB Separator | Other Name: | Auto Feeding V-CUT PCB Separator |
|---|---|---|---|
| Voltage: | AC220V/110V | Control: | PLC |
| Max Separating Length: | 50-230mm | Loading: | Manual |
| Feeding: | Automatic | Separating: | Automatic |
| High Light: | pcb board cutting machine,pcb depaneling machine |
||

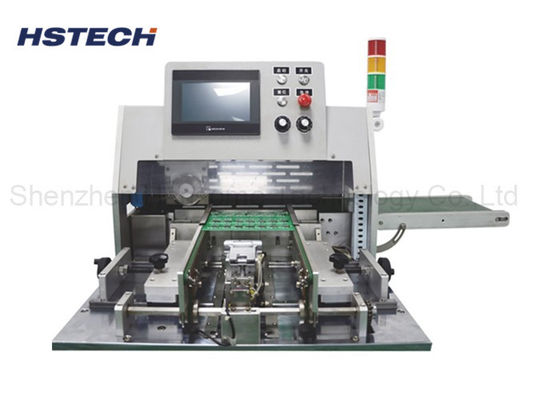

V-Cut PCB Separator Auto Feeding ESD Belt Transport Board Depaneling Machine
Introduction
This machine is a manual board loading machine automtic feeding balde moving separating machine, the main feature is the adopt the PLC control, using the motor to drive the boards to achieve automatic feeding, when the boards arrive the separating side, the inductor will send a signal to the PLC, so it will give a order to the balde, then the blade will move and start for depaneling. It's a more efficienct separator than the manual feeding V-Cut PCB separator, which can save much more boards feeding time, also the machine equipped with the ESD transporting belt, so the operator just wait for collecting the boards after separating.
Features
1, PLC control to achieve the automatic board loading.
2, Manual board loading, autoamtic board feeding.
3, Inductor send signal to the PLC to order the blade moving for separating.
Specification
| Product name | Auto feeding blade moving PCB separator |
| Model | HS-F306 |
| Part-up height | Max 35mm |
| Part-down height | Max 20mm |
| Air supply | 0.6-0.8Mpa |
| Output | 12.5tons(gross) |
| Voltage | AC220V/110V,50/60Hz |
| Separating width | 50~230mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Machine size | 700*650*620mm |
| Weight | 86kg |
Application boards
