| Place of Origin: | China |
| Brand Name: | KIC |
| Model Number: | 2000 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Special design aluminum box |
| Delivery Time: | 3~5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |
| Certification: | ISO9001 | Product Name: | KIC Thermal Proflier |
|---|---|---|---|
| Model: | KIC 2000 | Test Accuracy: | 0.1~0.3° |
| Repeat Accuracy: | ±1.5° | Working Temperature: | -150℃～+1050℃ |
| Channels: | 9,12 | Battery: | 9V Alkaline Battery |
| High Light: | thermal profiler equipment,oven temperature profil |
||

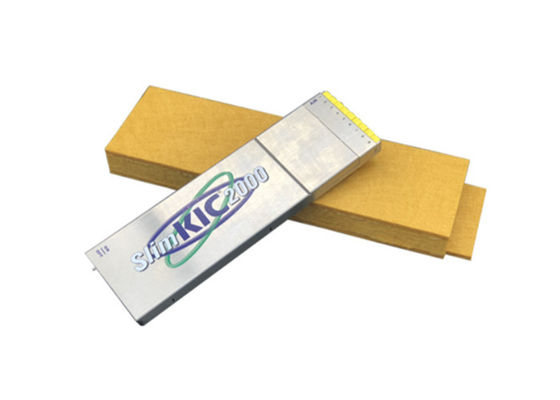

SMT Reflow Oven Wave Soldering Oven Temperature KIC Test Thermal Profiler
Features
1, Small testing error.
2, Guided operation software, easy to learn.
3, Can test the wave and reflow temperature.
4, Intelligent start and stop function.
5, Transmit reception frequency: 433.92MHz.
6, Thermal Process Optimization for Lower Energy Use.
7, Standard SPC charting software include CpK, Help reveal change in the profile over time.
8, Standard Profile Overlay, show different process.
9, Robust and Compact Hardware with 1 year warranty.
10, 9 and 12 Channels (Standard Type K TC connectors).
Specifications
| Accuracy | ±1.2°C |
| Resolution | Variable 0.3 to 0.1°C |
| Internal Operating Temp | 0°C to 105°C |
| Thermocouple Compatibility | Type K, 9 or 12 TCs |
| Temperature Range | -150°C to 1050°C |
| Computer Capability | PC |
| Power Requirements | 9V alkaline battery |
| Thermal Receiver | 433.92 MHz |
| Dimensions | See Temperature Tolerance Chart below for specifications. |

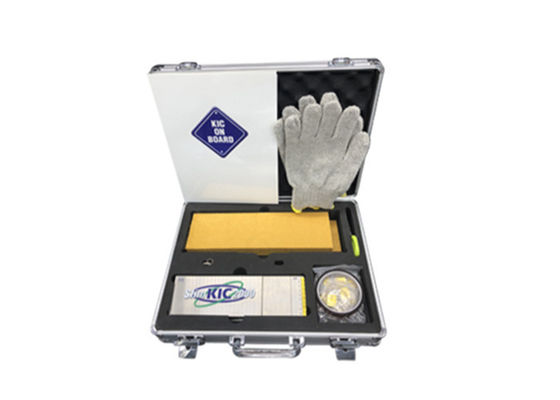

Standard configuration
1, Tester host 1 pc
2, Test insulation housing 1 pc
3, Suitcase 1 pc
4, Temperature test wire 1 pc
5, Data disc 1 pc
6, User's manual
7, Inspection report
8, Data line 1pc
