1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W

1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W

  • 1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W
  • 1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W
1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,TUV,ROHS
Model Number: HS-P223
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Semi-auto 1.2M Screen Printer Other Name: Semi Automatic Solder Paste Printing Machine
Max PCB Dimension: 1200x320mm Working Table Size: 1300x350mm
Max Frame Size: 470x370~2000x550mm I/Ov Interface: SMEMA
Machine Size: 1680x900x1680mm Weight: Around 350kg
High Light:

solder paste check right machine

,

solder paste aging machine

Semi-auto Operation 1.2M LED Tube PCB Solder Paste Stencil Printing Machine



Introduction



This unit solder paste printing machine is used for printing the 1.2meter LED tube PCB, it's semi-automatic machine, manul loading, automatic printing, it's used before the pick and place machine.



Specification



Model HS-P223
Product name Semi-automatic stencil printer
Max PCB size 1200x320mm
Printing table size 1300x350mm
Stencil frame size 470x370~2000x550mm
Printing accuracy ±0.02mm
PCB thickness 0.2~2.0mm
Squeegee speed 0-100mm/s
Repeat accuracy ±0.02mm
Power supply AC220V/110V, 50/60Hz
Machine power 100W
Air pressure 5-7kg/cm³
Machine size 1680*900*1680mm
Machine weight Approx350kg



Features



1, Special design for 1.2meter LED tube, T8 or T5.

2, Touch screen control panel, easy operation and stable.

3, Using Delta smooth drving frequency inventor to ensure more stable scraper speed.

4, Flexible double-blade suspended squeegee, the sueegee can be adjusted up and down to the right position.

5, The scraper printing table also can be adjusted, froth or back.

6, Using SMC Cylinder, position seal adopt shaped two-way sealing structure, good performance.

7, High precision printing and repeating accuracy.

8, Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.

9, The machine also support glue printing, improve efficiency and save cost.

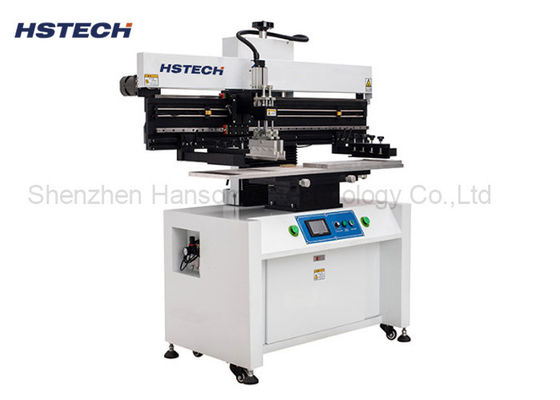

1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W 0

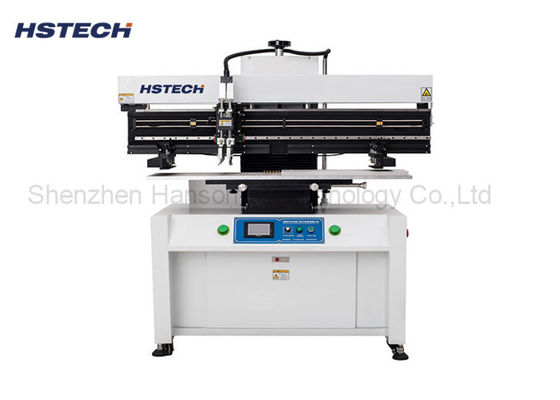

1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W 1

1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W 2

1.2M LED Tube PCB Solder Paste Stencil Printing Machine Semi Auto Operation 100W 3
