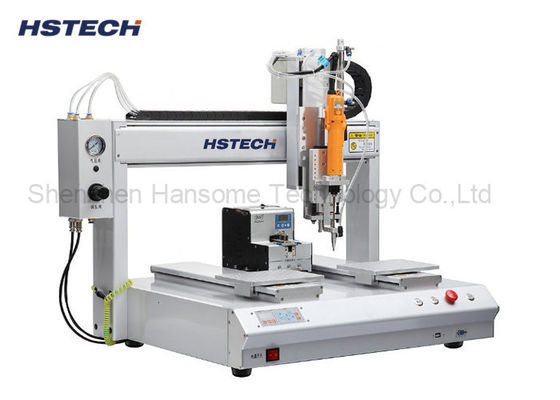

Aluminum Material Desktop Screw Machine 4 Axis Chain Moving Closed Loop Automatic

Aluminum Material Desktop Screw Machine 4 Axis Chain Moving Closed Loop Automatic
Aluminum Material Desktop Screw Machine 4 Axis Chain Moving Closed Loop Automatic Aluminum Material Desktop Screw Machine 4 Axis Chain Moving Closed Loop Automatic

Large Image :  Aluminum Material Desktop Screw Machine 4 Axis Chain Moving Closed Loop Automatic

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: 4Axis Screw Fastening Machine Feeding: Suction Feeding
Screw Feeder: Single, Or Customized Two Screws Compatible: M1-M6, Or Customized
Moving Range: 500*300*300*100mm Material: Aluminum
Port: Shenzhen Warranty: One Year
High Light:

desktop screw machine

,

screw locking tightening machine

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine

Introduction

This screw machine is a widely used screw fastening machine, compatible for many industries, smart phone, PC, electric device, furniture industry, etc. It's a 4 axis screw lock machine, with double working station, single screw driver and single feeder, the whole machine include a feeding system and a screw-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency.


Features


1, Widely used, small volume, can connect the automatic production line, convenient for product replacement.
2, With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
3, Double Y platform, so the operator can load alternately
4, 4 Axis operation, moving range 500*300*300*100mm.
5, High level automation degree, easy operation which the staff can master and debug quickly.
6, Touch screen display or teach pendant programmable achieve more operations, after setting the programming, the machine can be put into      production, also easy for management.
7, Easy operation, operator can operate several machines at the same time.
8, With the function of leak detection, if a screw did not fill in place it can fill continually or start alarm processing.

Specification



Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg



Main parts brand



1, Motor: Shinano    2, Guide: Hiwin    3, Photoelectric switch: Omron    4, Power supply: Meanwell
