Product Name: Automatic Stencil Printer Other Name: Solder Paste Printing Machine
PCB Size: 50x50~400x340mm Transport Height: 900±40mm
Width Adjustment: Automatic I/Ov Interface: SMEMA
High Light:

solder paste warm up machine

,

solder paste check right machine

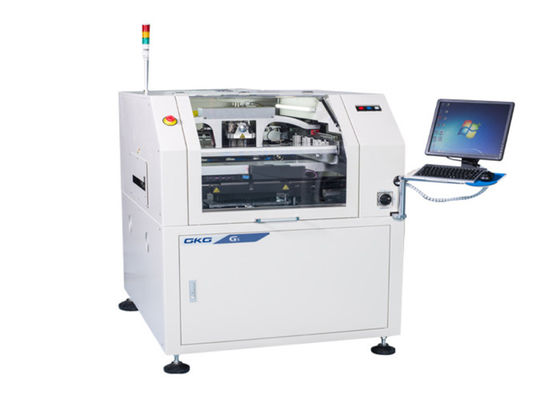

Windows Operation Tower Light GKG SMT Solder Paste Stencil Printing Machine



Specification



Model G5
Stencil size 370x370mm(min size)
737x737mm(max size)
20-40mm(thickness)
Max PCB Size 400x340mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
PCB warpage max 1% PCB diagonal
Transport height 900±40mm
Transport direction L-R,R-L
Transport speed max 1500mm/s, can be adjustment
Transport method One stage
WIdth adjustment automatic
I/O interface SMEMA
PCB positioning (support method) Magnetic pin/support block/up-down table
PCB clamping system
Patented over the top clamping/side clamping
Print head
Two independent motorised printheads
Squeegee Pressure
0.5~10Kg (Program Control)
Print Speed
6-200mm/sec
Print Mode
One /Twice
Squeegee Type
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Cleaning System
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
CCD FOV
8x6mm
Machine adjust range
X: ± 3mm, Y:± 7 mm , θ:± 2°
Vision
Look Up/Down Optics Structure/CCD/Geometry Pattern-match

Whole Machine Specification

Repeat Position Accuracy
±0.01mm
Printing Accuracy
±0.025mm
Cycle Time
<8 Sec
Product Changeover
old:<3 mins,new:<5 mins
Air supply
4~6 kgf/cm
Power supply
AC:220±10%,50/60HZ, 2.5KW
Control method PC
Operation system
Windows XP/Win7
Machine Dimensions
1140(L) x 1364(W) x 1404 (H)mm
Machine Weight
Approx: around 1000Kg



Features



1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.



2, Cleaning system: GKG cleaning system equipped with three cleaning methods: dry cleaning, wet cleaning, vacuum. which can be combined
to use. It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency. The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste
in the mesh, which can achieve effective automatic cleaning function.CCD part and c leaning system is separated, when CCD working, CCD part
independently move to reduce the servo motor load and improve the machine speed and accuracy.

3, Image and optical system. Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged mark points), applicable for tin plating, coppering, gold plating,tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model,able to ensure high accuracy.

4, High adaptability steel mesh frame clamping system. Able to print all kinds of size screen frames, and quickly change modular
production line.

5, Using Windows XP/win7 operation interface, with good man-machine dialogue function, and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file. easy to switch Chinese/English interface, with operation log, fault record / fault self-diagnosis / fault analysis prompt / light alarm and other functions.

6, 2D paste printing quality test and analysis, Able to inspect shift ,insufficient paste, missing and bridge and other defects to ensure the printing quality.
