| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-BD4 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 5~7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

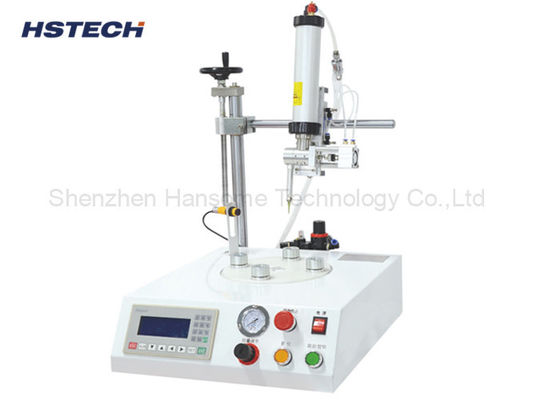

| Product Name: | LED Bulb Glue Dispenser | Power Supply: | AC220V/50~60Hz/200W |
|---|---|---|---|
| Max Dispensing Diameter: | 160mm(two Station),110mm(four Station) | Motor Speed: | Max 300mm/s |
| Repeat Accuracy: | ±0.02mm | Warranty: | 1 Year |
| Application: | LED Bulb, LED Par Light | Control Method: | Text Screen |
| High Light: | commercial vacuum packaging machine,automatic glue dispenser |
||
| Model | HS-BD4 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 160mm(two station),110mm(four station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | 420mm*532mm*532mm |
| Weight | 35Kg |
| Working Power | AC220V/50~60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
1, Four work stations in cycle, the designed capacity is 1000~1500pcs/h.
2, Equipped work piece detector to decide gluing or skip.
3, Gluing track can be set as full circle, single point or segmented arc etc.
4, Working mode can be four-station or two-station.
5, It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
