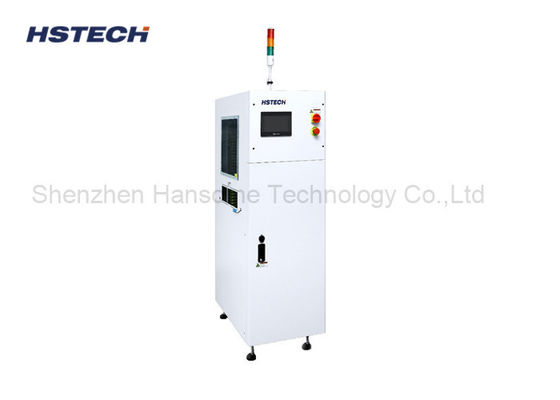

FIFO / By Pass Combined PCB Buffer Conveyor Max Store 25 Pcs Board

FIFO / By Pass Combined PCB Buffer Conveyor Max Store 25 Pcs Board

  • FIFO / By Pass Combined PCB  Buffer Conveyor Max Store 25 Pcs Board
FIFO / By Pass Combined PCB  Buffer Conveyor Max Store 25 Pcs Board
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-330BF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: PCB Buffer Machine Storage Capacity: 25pcs
PCB Dimension: L(50*50)-(450*330)mm Air Supply: 4-6 Bar,max 15L/min
Material: Stainless Steel Warranty: 1 Year
High Light:

smt production line equipment

,

pcb loader and unloader

Max Store 25 pcs Board FIFO / By-pass Combined PCB Handling Buffer Machine



Features



1, With FIFO and By-pass function, or cutomized to multiple function.

2, Soft touch LED control panel.

3, Using servo motor for accuracy positioning.

4, Leadscrew for width adjustment, smooth and stable.

5, The whole machine is small volume, won't take much factory space.

6, SMEMA communication interface, can be connected with other automation equipment.

7, Three color LED display for machine status.



Specification



Model: HS-330BF
Voltage: AC220V,50/60Hz
PCB Dimension: L(50*50)-(450*330)mm
Air supply: 4-6 bar,max 15L/min
Transport height: 900±20(mm)
Transport Direction: L-R or R-L (optional)
PCB thickness: min 0.46mm
Up/down pitches: 1-4(10mm step)
Store Capacity 25pcs or customized
Cycle time Around 15 seconds
Communication SMEMA
Machine Dimension: 600*1150*1560mm
Gross Weight: 280kg
