| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 10~12 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | SMT Nozzle Cleaner | Usage: | Remove Dirty Dust Flux From Noozles |
|---|---|---|---|
| Suitable Brand: | JUKI, FUJI, YAMAHA, Panasonic, Samsung, Simens, Etc | Power Supply: | AC110V/220V, 50/60Hz |
| Machine Type: | High Pressure Cleaner | Material: | SUS 304 Structure |
| After-sales Service Provided: | Online Support | Weight: | 45kg |
| High Light: | pcb cleaning equipment,smt stencil cleaning machine |
||

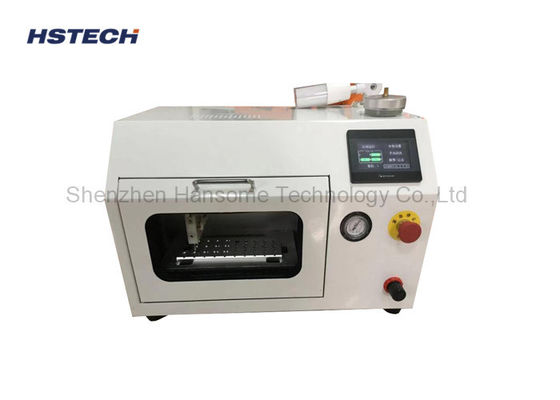

Touch Screen Control Cover Window JUKI FUJI YAMAHA SMT Mounter Nozzle Cleaner
Product Features
1, This machine used to clean dirty, dust, flux, etc on the surface of the nozzles.
2, Using customized high presicion engineering parts nozzle tray to hold all the nozzles, nozzle tray can hold 30pcs nozzles at most.
3, Automatic positioning to make the spraying nozzles focus on the holes of the nozzles, spraying nozzles on the top of the nozzles.
4, After setting the cleaning time and drying time to start the cleaning.
5, Max can cleaning 30pcs nozzles at one time, cleaning row by row, each row 3 pcs, total 30pcs.
6, Special design solvent tank to hold D.I water at the side of the machine, easy to feeding and release water.
7, Visiable window, which can watching all the process.
8, Touch screen control, easy to operating.
9, Whole machine made of stainless steel, suface paint the computer white color.
10, The machine is one year warranty, provide online technical support any time.
Specification
| Model | HS-801 |
| Usage | Cleaning dirty nozzles and reuse them |
| Cleaning objects | JUKI, FUJI, YAMAHA, PANASONIC, etc nozzles |
| Cleaning nozzle size | 0201 and bove |
| Cleaning time | 2-4 min |
| Drying time | 2-4 min |
| Positioning system | Automatic |
| Way to place nozzles | Customized nozzle tray |
| Power supply | AC110V/220V, 50/60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
