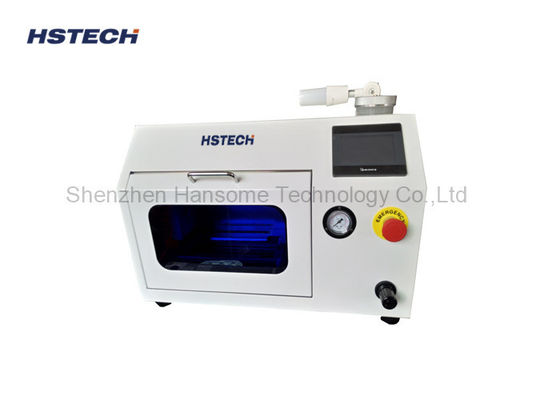

High Precision SMT Cleaning Equipment Using D.I Water Pure Compressor Air Clean 30pcs

High Precision SMT Cleaning Equipment Using D.I Water Pure Compressor Air Clean 30pcs
High Precision SMT Cleaning Equipment Using D.I Water Pure Compressor Air Clean 30pcs

Large Image :  High Precision SMT Cleaning Equipment Using D.I Water Pure Compressor Air Clean 30pcs

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-801
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 10~12 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Chip Mounter Nozzle Cleaner Other Name: SMT Nozzle Cleaner
Suitable Nozzle Brand: JUKI, FUJI, YAMAHA, Panasonic, Samsung, Simens, Etc Cleaning Process: Cleaning And Drying
Material: Stainless Steel Warranty: 1 Year
High Light:

circuit board cleaning equipment

,

smt stencil cleaning machine

Using D.I Water Pure Compressor Air Max Clean 30pcs SMT Nozzle Cleaning Machine



Product Features



1, This nozzle cleaner work with pure compressor air as power, using D.I water as solvent, cleanness and not harmful.

2, The whole process including cleaning and drying, ensure the nozzles can be reuse quickly.

3, Elegant white color for the machine surface, control panel at the right side, good appearance.

4, Light display for the machine status.

5, Equip with a D.I water storing tank, with a cover at the top side, also with water level scale display.

6, Transprent cover window, can fully watching the cleaning process.

7, Safety protect, alarm function when cleaning and drying is finished. Also with emergency stop button control and electricity overload protection.

8, Touch screen panel control, easy to learn and understand.

9, One button operation, after set the cleaning time and drying time, press the start button to start, and wait till it finished.

10, Low working noise.



Specification



Model HS-801
Usage Cleaing dirty on the nozzles
Cleaning objects Nozzles from all the chip mounter
Air pressure 0.5~0.6Mpa
Air source Pure compressor air
Control mode Touch Screen
Jet pressure ≤0.4MPa
Air wastage Under 280NL/min
Water source D.I water
Water storage 800cc
Water consumption 300cc/hrs
Admission pipe/Drainpipe φ8/φ6
Nozzle tray Default 30 nozzles
Nozzle size 0201-2512inch
Noise 35-60dB
