Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling

Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling
Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling

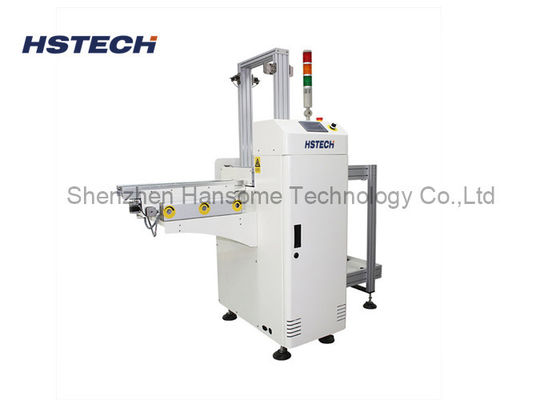

Large Image :  Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460ULD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Unloader Power: AC110V/AC220V,50/60Hz
PLC: MITSUBISHI Optoelectronic Switch: Omron
Condition: New Structure: Belt Conveyor
Speed: Adjustable Pcb Direction: L-R Or R-L(customized)
High Light:

smt assembly equipment

,

pcb loader and unloader

Standard Height Width Adjustment Board Handling PCB Unloader Machine



Features

1, Stainless metarials, durable.

2, With the special structure of anti clamping plate and foolproof.

3, 90W brake motor drive with ball screw make Magazine, step into the elevator.

4, Mitsubishi PLC

5, Selective pitch settings

6, Automatic magazine change-over.

7, Automatic magazine alignment by upper and lower pneumatic clamp in,

8, Tower light display for machine status

9, SMEMA Signal.



Application

This machine is used for collect the PCBs to the magazines at the end of SMT line.



Specification

Model HS-250ULD HS-330ULD HS-390ULD HS-460ULD
Voltage AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Magazine dimension 355*320*565 460*400*565 535*460*565 535*530*565
Magazine quantity top side 1 pc, down 1 pc, or customized to hold more
Air supply 0.4~0.6Mpa
Transport height 900±20(mm) standard
Loading time 6 sec
Magazine change over time around 20 secs
Transport direction L to R, or R to L,optional
PCB thickness Min 0.4mm
Step pitch selection 1-4(10mm step pitchs)
Communication SMEMA
Machine dimension 1700*780*1200 1900*860*1200 2200*920*1200 2200*1120*1200
Weight Approx 160kg Approx 200kg Approx 240kg Approx 260kg



Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling 0Adjustable PCB Magazine Unloader Standard Height Width Adjustment Board Handling 1

Contact Details
Shenzhen Hansome Technology Co., Ltd.

Contact Person: Mr. Rudi Jin

Tel: 86-755-23209382

Fax: 86-755-23209382
