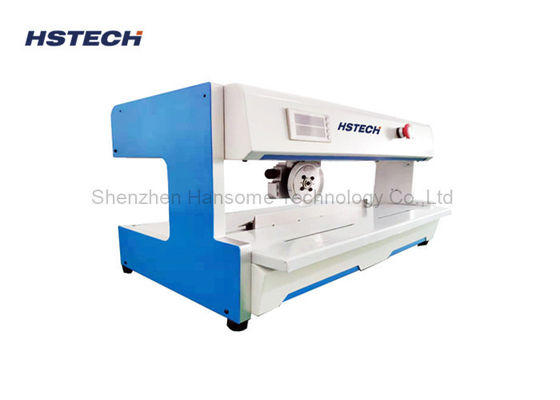

Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined

Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined
Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined

Large Image :  Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-203
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: V-cut PCB Separator Blade: Upper Circular Blade And Bottom Linear Blade
Operation: Blade Moving Switch: Foot Switch
Suitable Board: FR4,aluminum,fiber-glass Board,LED Board,LED Strip Color: Blue,white
High Light:

pcb depaneling machine

,

v cut pcb depanelizer

Patent Design Circular Linear Blade Combined Manual V-cut PCB Separating Machine



Features



1, It can cut rapidly regardless of the quantity, very economic.

2, Upper circular blade and bottom linear blade all using import high quality steel, can be sharpen and repeat using.

3, Moving range:(0~400mm/600mm)as customers' request, circular blade can be adjustment(0~5mm),suitable for different thickness board, slove the problem for differenct V-cut groove.

4, The max cutting width is unlimited, single PCB best at 1~200mm.

5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.

6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.



Specification



Model HS-203 HS-206
Voltage AC110V/220V 50/60Hz
Blade size(circular blade) ϕ125mm*30mm*3mm
Blade size(linear blade) 420mm×65mm×6mm
Max cutting length 5~400mm 5~600mm
PCB thickness 0.8~3mm
Separation speed 300~500mm/second(adjustable)
Separation width Best 1~200mm
Components height ≤32mm( or customized)
Power 60W
Machine dimension 710x450x420mm 900x450x420mm
Weight 55kg 75kg



Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined 0



Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)



Safe Printed Circuit Board Cutter Patent Design Circular Linear Blade Combined 1
